Technical Specifications
NXP 74HC273N technical specifications.
General
| Package/Case | DIP |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 66MHz |
| Height | 3.2mm |
| Lead Free | Lead Free |
| Length | 26.92mm |
| Logic Function | D-Type |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Circuits | 8 |
| Output Current | 5.2mA |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 13ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74HC273N Datasheet
Download the complete datasheet for NXP 74HC273N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

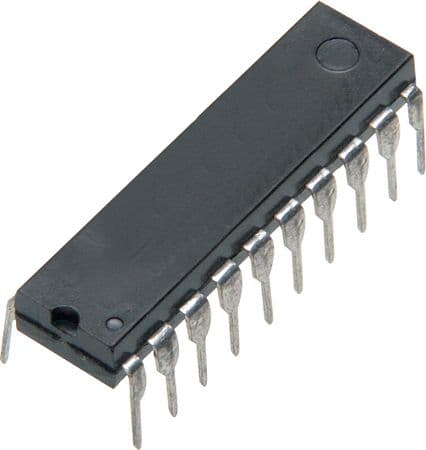

Product Images
