Technical Specifications
NXP 74HCT573PW technical specifications.
General
| Package/Case | TSSOP |
| Height | 0.95mm |
| High Level Output Current | -6mA |
| Lead Free | Lead Free |
| Length | 6.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Circuits | 8 |
| Number of Input Lines | 8 |
| Number of Output Lines | 8 |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 17ns |
| RoHS Compliant | Yes |
| Voltage | 7V |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74HCT573PW Datasheet
Download the complete datasheet for NXP 74HCT573PW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

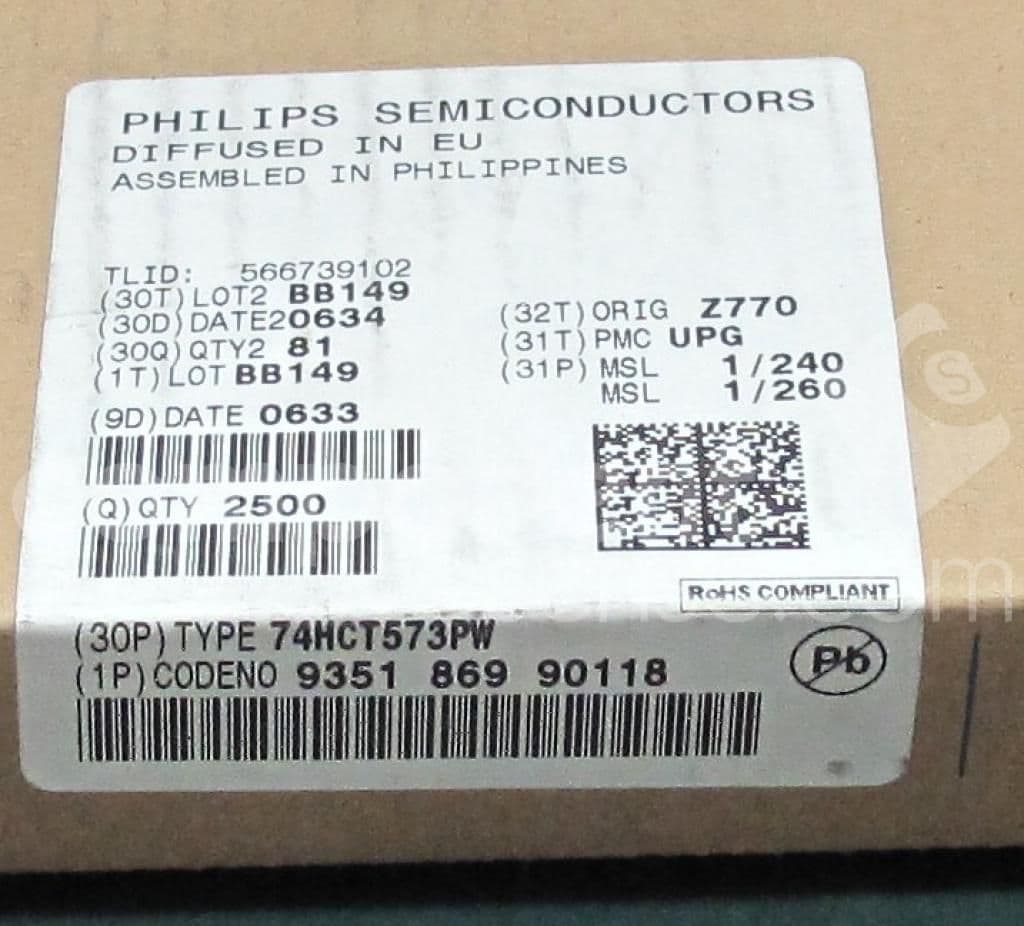

Product Images
