Technical Specifications
NXP 74LV86DB112 technical specifications.
General
| Package/Case | SSOP |
| High Level Output Current | -12mA |
| Logic Function | XOR GATE, OR GATE |
| Low Level Output Current | 12mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 78 |
| Packaging | Rail/Tube |
| Propagation Delay | 13ns |
| Quiescent Current | 40uA |
| Radiation Hardening | No |
| Series | 74LV |
| Technology | CMOS |
| Turn-On Delay Time | 11ns |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74LV86DB112 Datasheet
Download the complete datasheet for NXP 74LV86DB112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

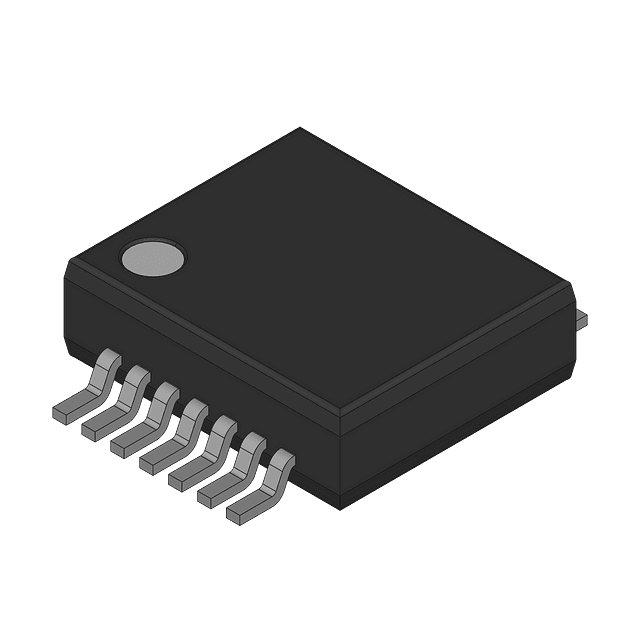

Product Images
