Technical Specifications
NXP 74LVC08AD technical specifications.
General
| Package/Case | SO |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Logic Function | AND GATE |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Outputs | 1 |
| Packaging | Rail/Tube |
| Propagation Delay | 5.5ns |
| Quiescent Current | 40uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Technology | CMOS |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74LVC08AD Datasheet
Download the complete datasheet for NXP 74LVC08AD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

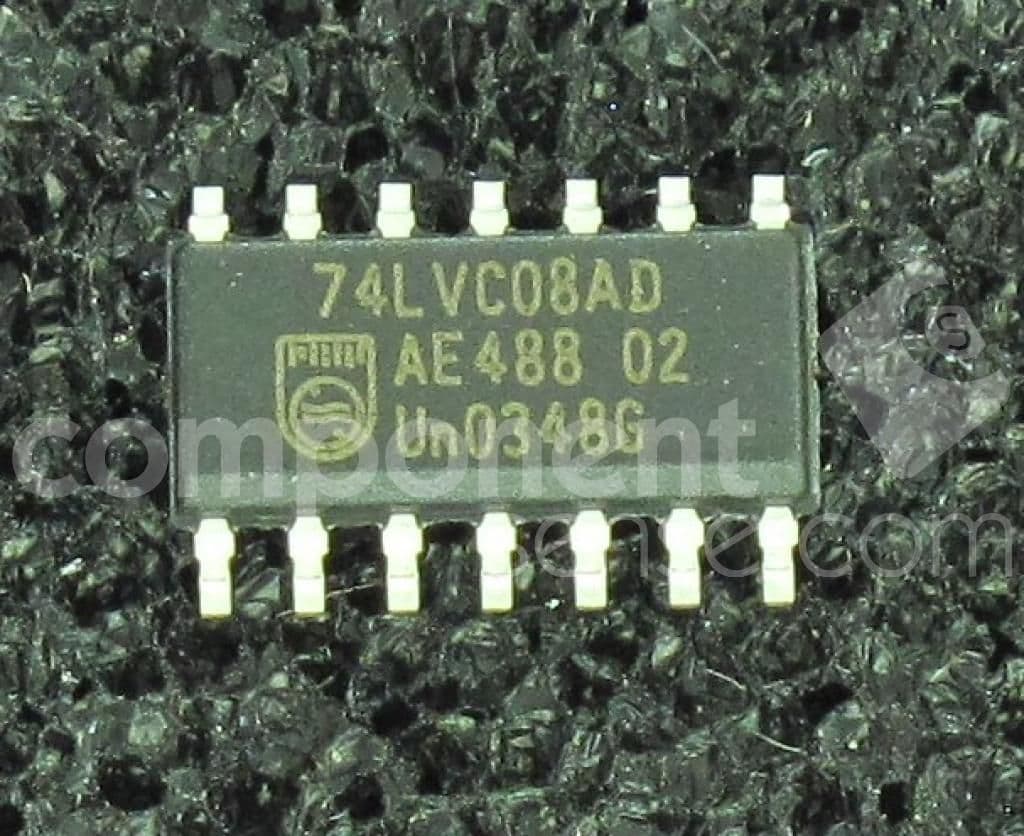

Product Images
