The 74LVC32245AEC,551 is an 8-bit bidirectional transceiver with a logic function of inverting and non-inverting. It has a propagation delay of 3ns and a quiescent current of 40uA. The device operates over a temperature range of -40°C to 85°C and is available in a LFBGA package. It is not RoHS compliant.
PackageLFBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
NXP 74LVC32245AEC,551 technical specifications.
General
| Package/Case | LFBGA |
| Contact Plating | Tin, Lead |
| Direction | Bidirectional |
| High Level Output Current | -24mA |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Output Type | 3-STATE |
| Package Quantity | 285 |
| Packaging | Tray |
| Polarity | Non-Inverting |
| Propagation Delay | 3ns |
| Quiescent Current | 40uA |
| RoHS Compliant | No |
| Series | 74LVC |
Compliance
| RoHS | Not Compliant |
Datasheet
NXP 74LVC32245AEC,551 Datasheet
Download the complete datasheet for NXP 74LVC32245AEC,551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

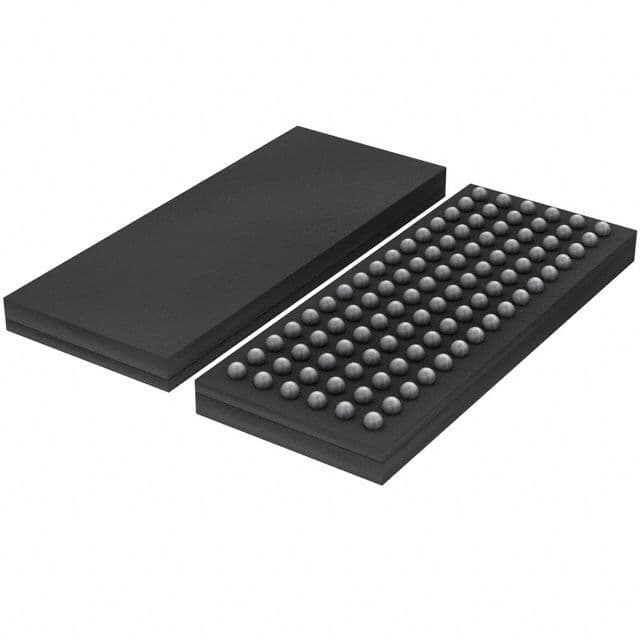

Product Images
