Technical Specifications
NXP 74LVC821ABQ118 technical specifications.
General
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Gold |
| Frequency | 150MHz |
| High Level Output Current | 24mA |
| Logic Function | D-Type |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Bits per Element | 10 |
| Number of Elements | 1 |
| Output Type | 3-STATE |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Quiescent Current | 100nA |
| Series | 74LVC |
| Turn-On Delay Time | 1.5ns |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74LVC821ABQ118 Datasheet
Download the complete datasheet for NXP 74LVC821ABQ118 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

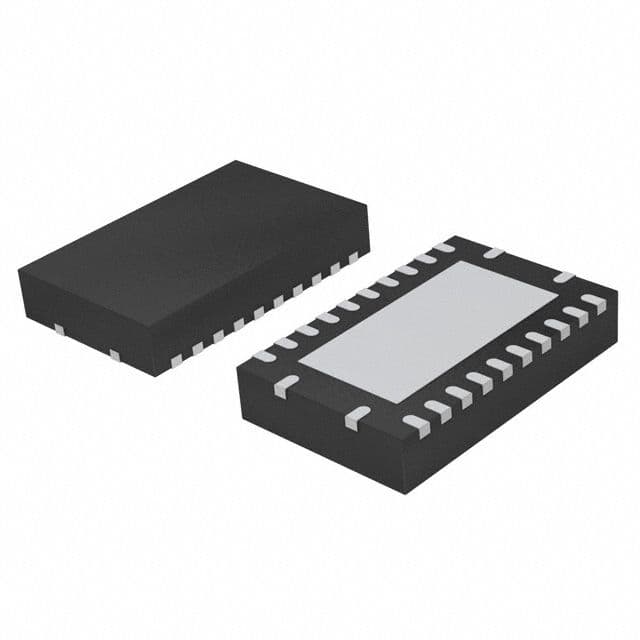

Product Images
