Technical Specifications
NXP BAP51-03,115 technical specifications.
General
Contact Plating
Tin
Diode Capacitance-Max
0.55pF
Diode Type
PIN - Single
Forward Current
50mA
Lead Free
Lead Free
Max Current Rating
50mA
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
500mW
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
500mW
Reverse Voltage
50V
Reverse Voltage (DC)
50V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
NXP BAP51-03,115 Datasheet
Download the complete datasheet for NXP BAP51-03,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

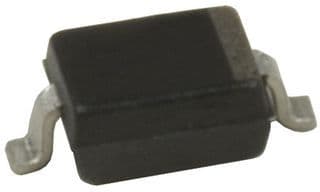

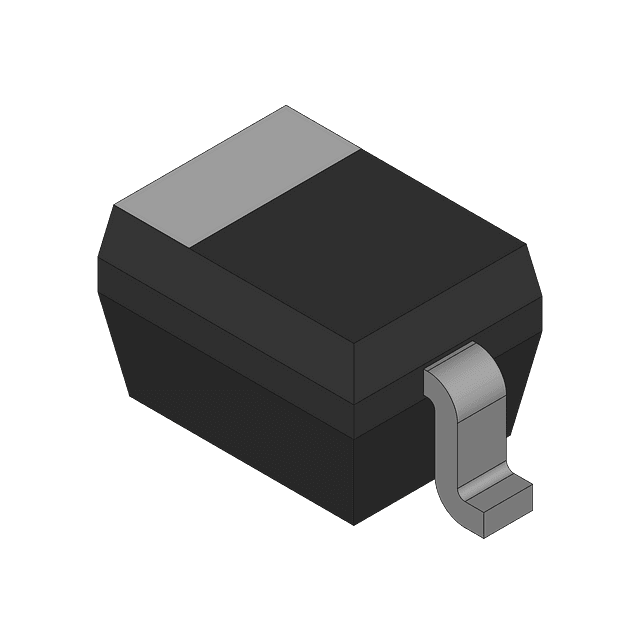

Product Images
