NXP
BAS70-05W
DIODE 0.07 A, 70 V, 2 ELEMENT, SILICON, SIGNAL DIODE, PLASTIC, SC-70, 3 PIN, Signal Diode
PackageSOT-323
Capacitance2pF
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP BAS70-05W technical specifications.
General
Capacitance
2pF
Package/Case
SOT-323
Forward Current
70mA
Height
1mm
Length
2.2mm
Max Forward Surge Current (Ifsm)
100mA
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
70V
Max Reverse Current
10uA
Mount
Surface Mount
Packaging
Cut Tape
Reach SVHC Compliant
No
Reverse Voltage
70V
RoHS Compliant
Yes
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
NXP BAS70-05W Datasheet
Download the complete datasheet for NXP BAS70-05W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

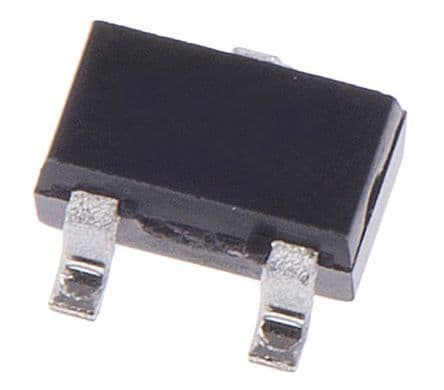

Product Images
