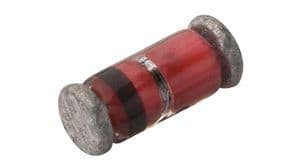

BAS85

Configuration = Single / Peak Average Forward Current (If(AV)) mA = 200 / Reverse Repetitive Voltage Max. (Vrrm) V = 30 / Forward Voltage (Vf) mV = 400 / Reverse Current Max. uA = 2.3 / Peak Non-Repetitive Surge Current (Itsm) mA = 300 / Capacitance pF = 10 / Operating Temperature Min. °C = -65 / Operating Temperature Max. °C = 125 / Package Type = SOD-80C / Pins = 2 / Mounting Type = Surface Mount / MSL = Level-1 / Packaging = Tape & Reel / Thermal Resistance K/W = 320 / Reflow Temperature Max. °C = 260
