PackageSOT-89
MountingSurface Mount
PolarityNPN
Power1W
Quick Jump:
Technical Specifications
NXP BCV29 technical specifications.
General
Package/Case
SOT-89
Collector Base Voltage (VCBO)
40V
Collector Emitter Breakdown Voltage
30V
Collector Emitter Saturation Voltage
1V
Collector Emitter Voltage (VCEO)
30V
Emitter Base Voltage (VEBO)
1.5V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
1.3W
Mount
Surface Mount
Number of Elements
1
Packaging
Tape and Reel
Polarity
NPN
Power Dissipation
1W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
NXP BCV29 Datasheet
Download the complete datasheet for NXP BCV29 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

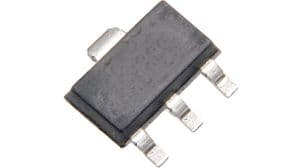

Product Images
