The BGY588N,112 is a 24V push-pull amplifier with a maximum operating temperature of 100°C and a minimum operating temperature of -20°C. It operates at a frequency range of 40 MHz to 550 MHz and has a supply current of 325mA. The amplifier is lead free and features gold contact plating. It is packaged in a rail/Tube package quantity of 25 and is RoHS compliant.
Frequency40 MHz to 550 MHz
Current325mA
MountingScrew
Quick Jump:
Technical Specifications
NXP BGY588N,112 technical specifications.
General
| Contact Plating | Gold |
| Lead Free | Lead Free |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -20°C |
| Mount | Screw |
| Noise Figure | 5dB |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Frequency | 40 MHz to 550 MHz |
| Operating Supply Current | 325mA |
| Operating Supply Voltage | 24V |
| Output Type | PUSH-PULL |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Supply Current | 325mA |
| Test Frequency | 50MHz |
Compliance
| RoHS | Compliant |
Datasheet
NXP BGY588N,112 Datasheet
Download the complete datasheet for NXP BGY588N,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

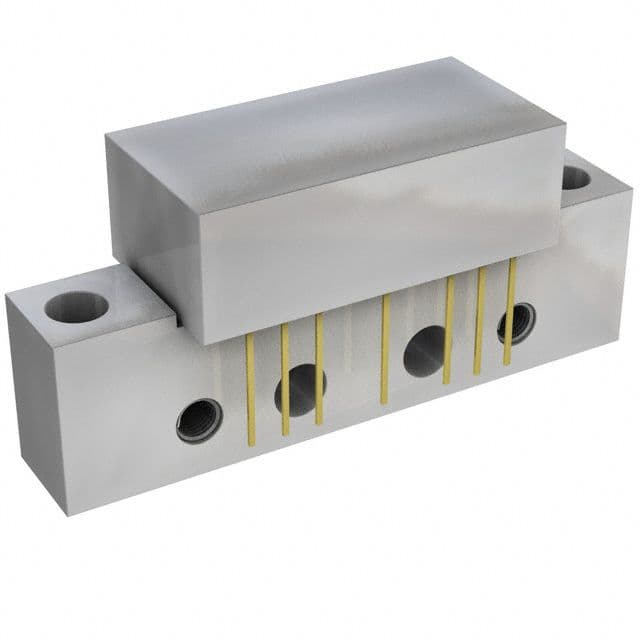

Product Images
