The BTA204W-600B,135 is a surface mount triac with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It has a maximum repetitive reverse voltage of 600V and a hold current of 30mA. The device is RoHS compliant and lead free. It is packaged in a TO-261-4 package and available in a cut tape format.
PackageTO-261-4
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP BTA204W-600B,135 technical specifications.
General
| Package/Case | TO-261-4 |
| Hold Current | 30mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| RMS Current (Irms) | 1A |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NXP BTA204W-600B,135 Datasheet
Download the complete datasheet for NXP BTA204W-600B,135 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

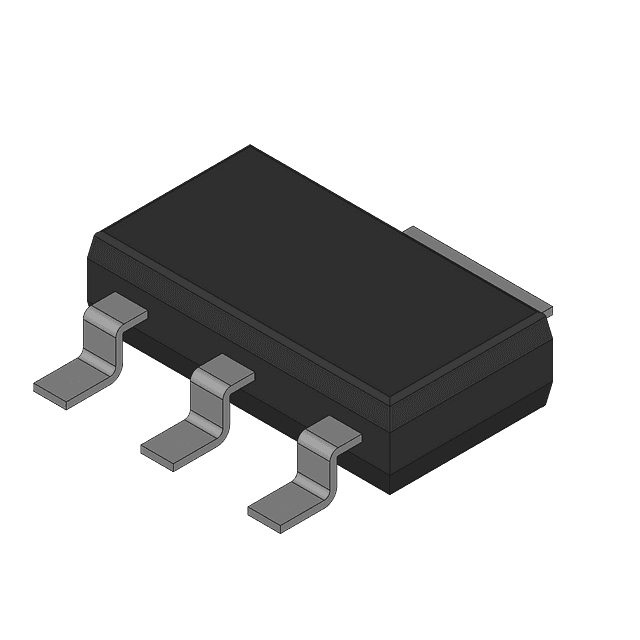

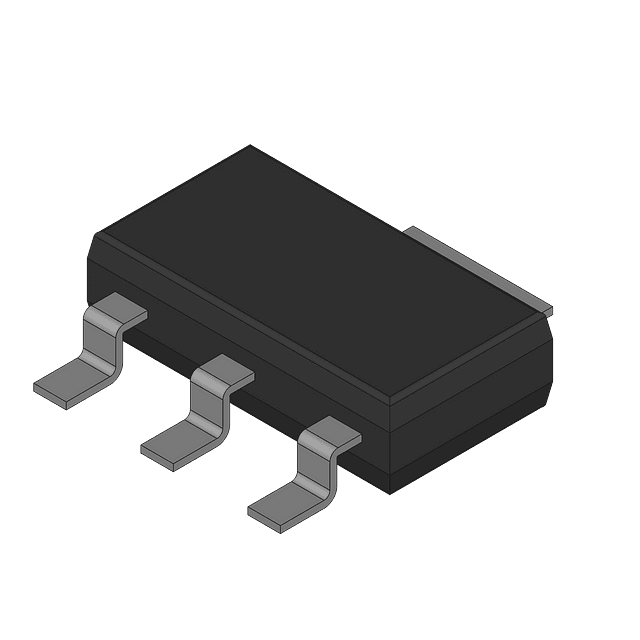

Product Images
