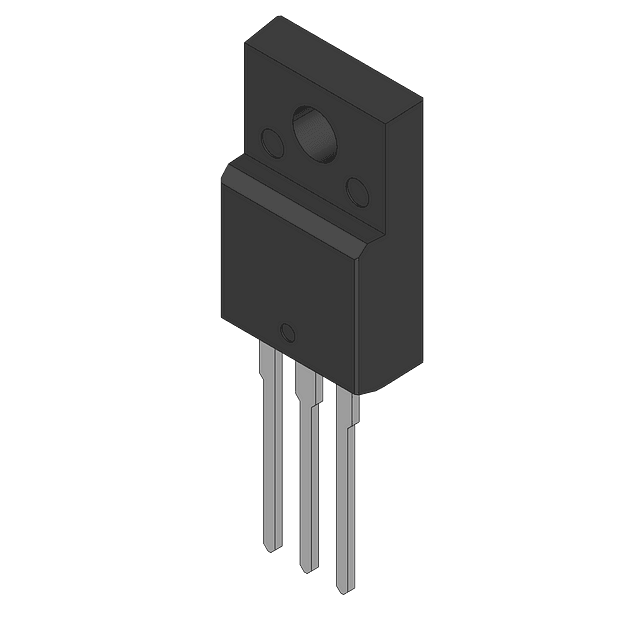

BYW29EX-200,127

BYW29EX-200

PackageTO-220-2

MountingThrough Hole

Quick Jump:

NXP BYW29EX-200,127 technical specifications.

Average Rectified Current	8A
Package/Case	TO-220-2
Forward Current	8A
Height	9.3mm
Lead Free	Lead Free
Length	10.3mm
Max Forward Surge Current (Ifsm)	88A
Max Operating Temperature	150°C
Min Operating Temperature	-40°C
Max Repetitive Reverse Voltage (Vrrm)	200V
Max Reverse Current	10uA
Max Reverse Voltage (DC)	200V
Max Surge Current	88A
Mount	Through Hole
Package Quantity	50
Packaging	Rail/Tube
Peak Non-Repetitive Surge Current	88A
Radiation Hardening	No
Reverse Recovery Time	25ns
Reverse Voltage	200V
RoHS Compliant	Yes
Width	4.6mm
