NXP
BZX79-C51

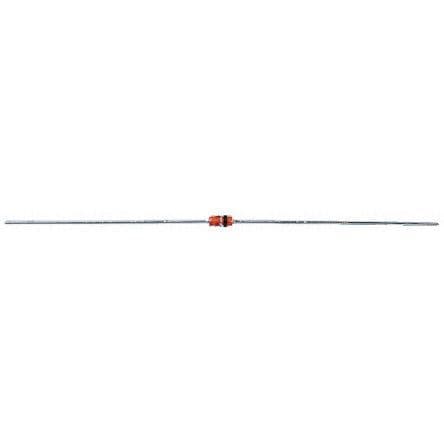

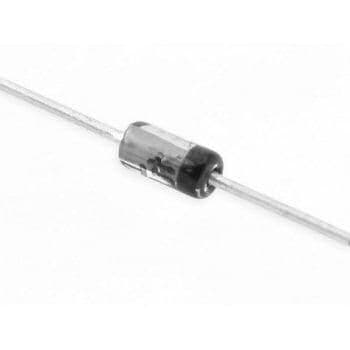

51V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35, HERMETIC SEALED, GLASS, SC-40, 2 PIN
PackageDO-35
Capacitance19pF
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
NXP BZX79-C51 technical specifications.
General
Capacitance
19pF
Package/Case
DO-35
Height
1.85mm
Impedance
180R
Lead Free
Lead Free
Length
4.25mm
Max Operating Temperature
200°C
Min Operating Temperature
-65°C
Max Power Dissipation
500mW
Max Reverse Leakage Current
50nA
Mount
Through Hole
Packaging
Bulk
Power Dissipation
500mW
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
51V
Width
1.85mm
Zener Voltage
51V
Compliance
RoHS
Compliant
Datasheet
NXP BZX79-C51 Datasheet
Download the complete datasheet for NXP BZX79-C51 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
