NXP
BZX84-C13
DIODE 13 V, 0.25 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, TO-236AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Voltage Regulator Diode
PackageTO-236AB
Capacitance120pF
MountingSurface Mount
Power350mW
Quick Jump:
Technical Specifications
NXP BZX84-C13 technical specifications.
General
Capacitance
120pF
Package/Case
TO-236AB
Height
1mm
Impedance
30R
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
250mW
Max Reverse Leakage Current
100nA
Mount
Surface Mount
Power Dissipation
350mW
RoHS Compliant
Yes
DC Rated Voltage
13V
Width
1.4mm
Zener Voltage
13V
Compliance
RoHS
Compliant
Datasheet
NXP BZX84-C13 Datasheet
Download the complete datasheet for NXP BZX84-C13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

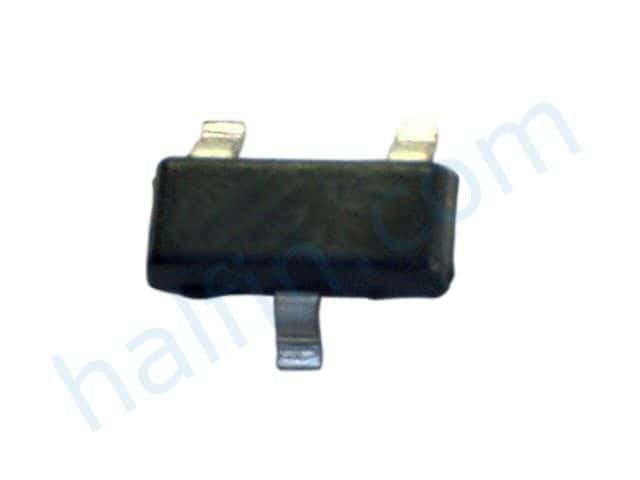

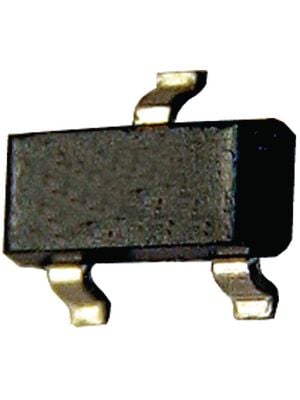

Product Images
