Technical Specifications
NXP BZX84-C2V4 technical specifications.
General
| Package/Case | TO-236AB |
| Height | 1mm |
| Impedance | 100R |
| Length | 3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 250mW |
| Max Reverse Leakage Current | 50uA |
| Mount | Surface Mount |
| RoHS Compliant | Yes |
| Width | 1.4mm |
| Zener Voltage | 2.4V |
Compliance
| RoHS | Compliant |
Datasheet
NXP BZX84-C2V4 Datasheet
Download the complete datasheet for NXP BZX84-C2V4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

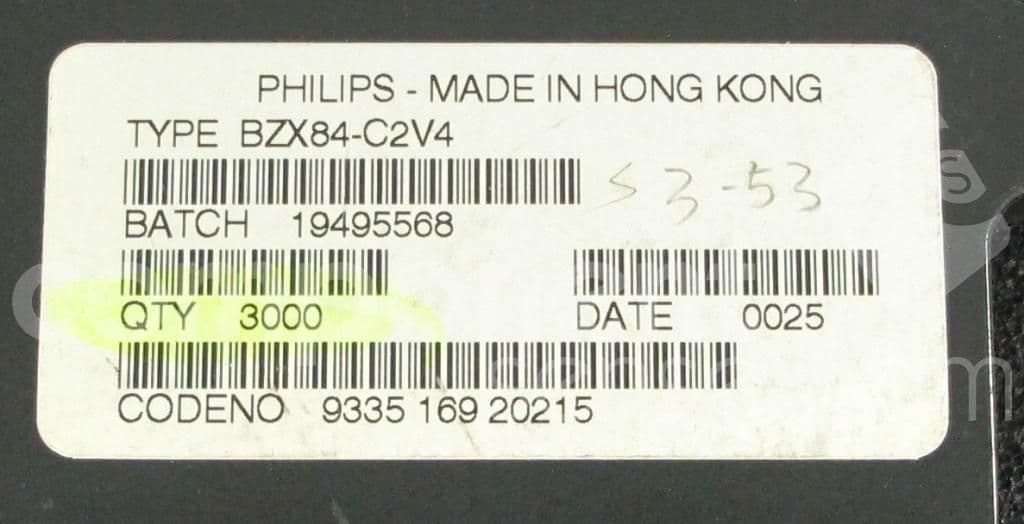

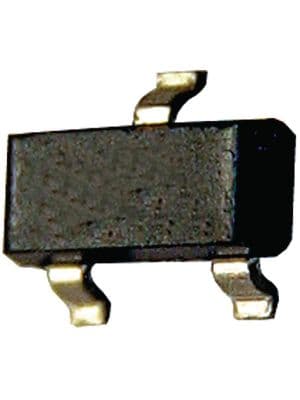

Product Images
