NXP
HEF4052BT
IC DUAL 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, 3.90 MM, PLASTIC, MS-012, SOT109-1, SOP-16, Multiplexer or Switch
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP HEF4052BT technical specifications.
General
| Package/Case | SOIC |
| Height | 1.45mm |
| Length | 10mm |
| Logic Function | Multiplexer, Demultiplexer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 4 |
| Operating Supply Voltage | 12V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Technology | CMOS |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
NXP HEF4052BT Datasheet
Download the complete datasheet for NXP HEF4052BT to view detailed technical specifications.
No datasheet is available for this part.

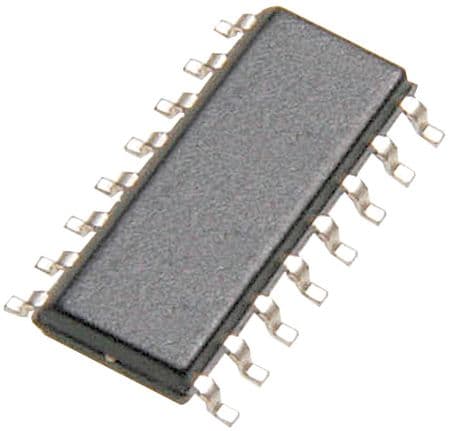

Product Images
