32-bit ARM9 microcontroller operating at 200MHz. Features include 80KB RAM, ROMless memory, and 64 programmable I/Os. Interfaces supported are SPI, USB, IrDA, MMC, SSP, UART, USART, and EBI/EMI. Integrated peripherals include POR, PWM, WDT, DMA, and LCD controllers, with 4 PWM channels and 3 timers/counters. Packaged in LFBGA for surface mounting, with an operating voltage range of 1.71V to 1.89V and an operating temperature range of -40°C to 85°C.
Frequency200MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP LH7A404N0F000B3;55 technical specifications.
General
| Package/Case | LFBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 200MHz |
| Interface | SPI, USB, IrDA, MMC, SSP, UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Length | 17.1mm |
| Max Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 1.89V |
| Memory Type | ROMless, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of I/Os | 64 |
| Number of Programmable I/O | 64 |
| Number of PWM Channels | 4 |
| Number of Timers/Counters | 3 |
| Operating Supply Voltage | 1.8V |
| Oscillator Type | External |
| Package Quantity | 450 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA, LCD |
| Radiation Hardening | No |
| RAM Size | 80KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | BlueStreak ; LH7A |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NXP LH7A404N0F000B3;55 Datasheet
Download the complete datasheet for NXP LH7A404N0F000B3;55 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

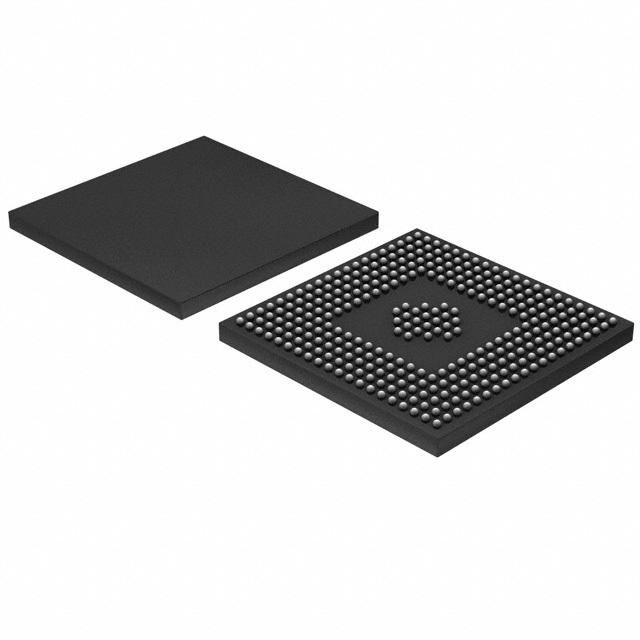

Product Images
