Digital serial relative humidity sensor with I2C and SMBus interface. Features an 11-bit resolution for precise measurements, operating across a wide temperature range from -55°C to 125°C. This component is housed in a compact SOT-505-1 (TSSOP) package, requiring a supply voltage between 2.8V and 5.5V. It is RoHS compliant and supplied on tape and reel for automated assembly.
PackageSOT-505-1
Current300uA
Quick Jump:
Technical Specifications
NXP LM75BDP,118 technical specifications.
General
Package/Case
SOT-505-1
Height
1.1mm
Interface
I2C, SMBus, 2-Wire, Serial
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
10uA
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.8V
Max Supply Voltage
5.5V
Min Supply Voltage
2.8V
Number of Bits
11
Operating Supply Current
100uA
Output Current
10mA
Output Type
I2C, Digital
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
11b
RoHS Compliant
Yes
Supply Current
300uA
Compliance
RoHS
Compliant
Datasheet
NXP LM75BDP,118 Datasheet
Download the complete datasheet for NXP LM75BDP,118 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

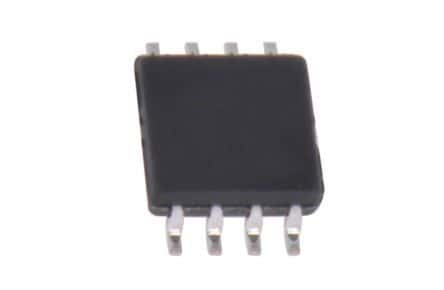

Product Images
