32-bit ARM Cortex-M0 microprocessor featuring a 50MHz core clock speed and 32KB of FLASH memory. This surface-mount microcontroller offers 10KB of RAM, 26 programmable I/O pins, and interfaces including I2C, SPI, UART, USART, SSP, and USB. Operating from 1.8V to 3.6V, it includes 8 ADC channels and 4 timers/counters. Packaged in a SOT-865-3 case, this lead-free component operates between -40°C and 85°C.
Frequency50MHz
PackageSOT-865-3
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP LPC11U24FHN33/401, technical specifications.
General
| Package/Case | SOT-865-3 |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 50MHz |
| Height | 0.85mm |
| Interface | I2C, SPI, USB, SSP, UART, USART |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Frequency | 50MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of ADC Channels | 8 |
| Number of GPIO | 26 |
| Number of I/Os | 26 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 26 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 4 |
| Number of USB Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 260 |
| Packaging | Tray |
| RAM Size | 10KB |
| Reach SVHC Compliant | No |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
NXP LPC11U24FHN33/401, Datasheet
Download the complete datasheet for NXP LPC11U24FHN33/401, to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

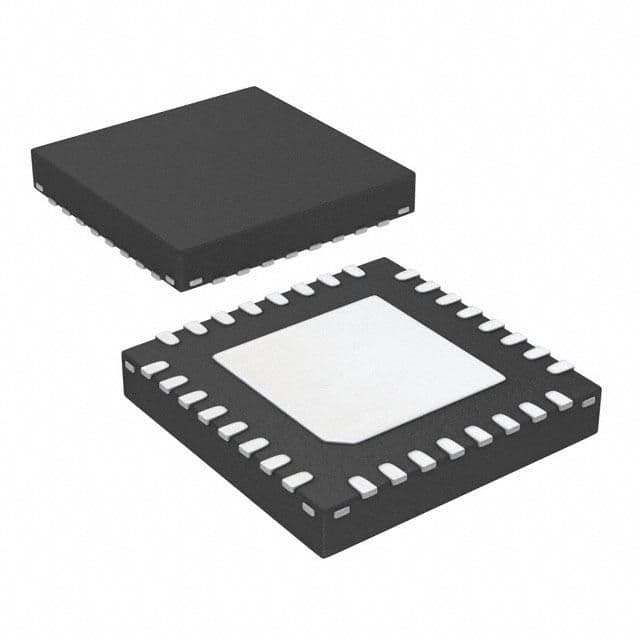

Product Images
