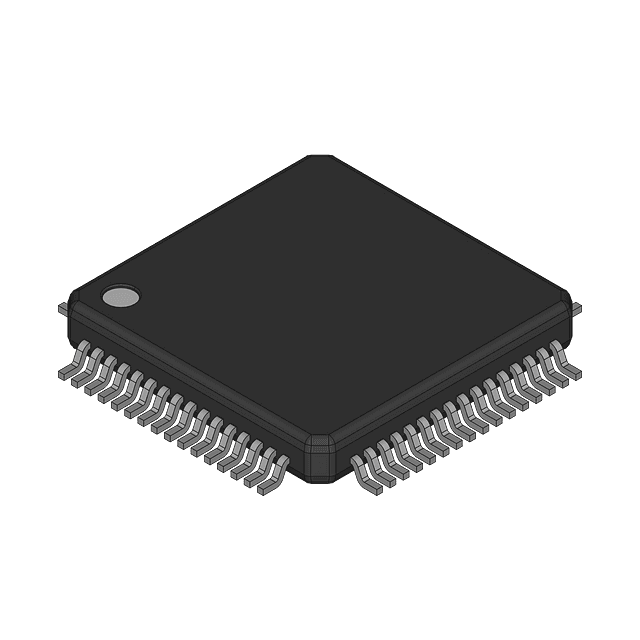

32-bit RISC microcontroller featuring a 25 MHz maximum clock frequency and 50 MHz speed. This industrial-grade component offers 55 I/O lines, 98KB of FLASH ROM, and 10KB of RAM. Includes DMA channels and an ADC, operating within a -40°C to 85°C temperature range and a 1.8V to 3.6V supply voltage. Packaged in a 64-terminal S-PQFP-G64 with dimensions of 14mm x 14mm.
Frequency50
Quick Jump:
Technical Specifications
NXP LPC11U36FBD64/401 technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 64 |
| Min Operating Temperature | -40 |
| Terminal Position | QUAD |
| JEDEC Package Code | S-PQFP-G64 |
| Width | 14 |
| Length | 14 |
| Temperature Grade | INDUSTRIAL |
| Supply Voltage-Nom | 3.3 |
| Supply Voltage-Min | 1.8 |
| Supply Voltage-Max | 3.6 |
| Clock Frequency-Max | 25 |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Number of I/O Lines | 55 |
| External Data Bus Width | 0 |
| Address Bus Width | 0 |
| Bit Size | 32 |
| Speed | 50 |
| ROM Programmability | FLASH |
| ROM (words) | 98304 |
| RAM (bytes) | 10240 |
| PWM Channels | NO |
| Has ADC | YES |
| DMA Channels | YES |
Compliance
| RoHS | Yes |
| HTS Code | 8542.31.00.01 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
NXP LPC11U36FBD64/401 Datasheet
Download the complete datasheet for NXP LPC11U36FBD64/401 to view detailed technical specifications.
No datasheet is available for this part.
