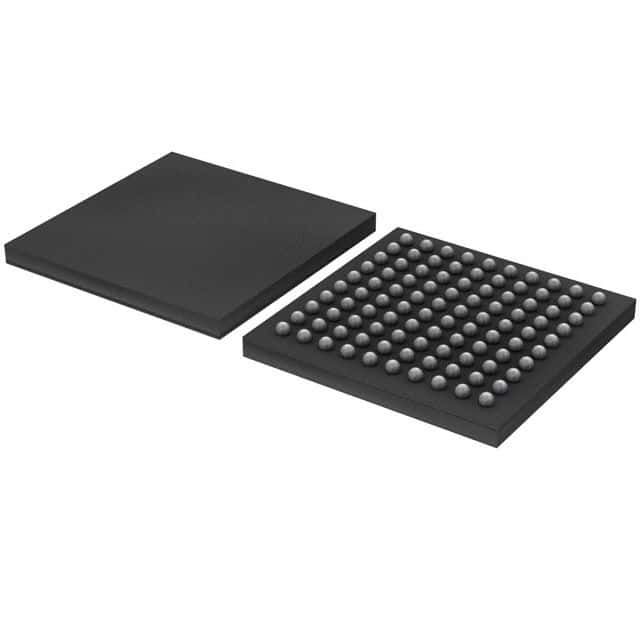

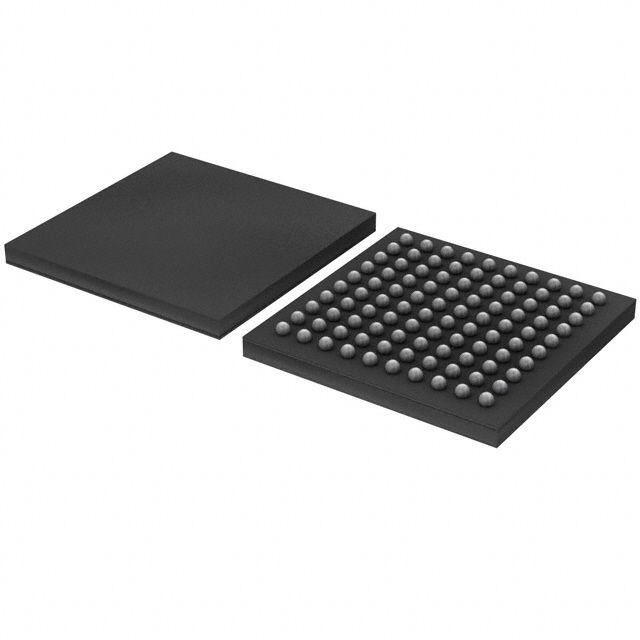

32-bit microcontroller featuring an ARM Cortex-M3 core, operating at up to 100MHz. This device offers 512KB of FLASH memory and 64KB of RAM, with extensive interfaces including I2C, SPI, USB, CAN, Ethernet, UART, and I2S. It includes 8 ADC channels, 70 I/Os, 4 timers, and integrated peripherals such as DMA, PWM, and a watchdog timer. Packaged in TFBGA, it operates from -40°C to 85°C with a 3.3V supply.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP LPC1768UKJ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TFBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Interface | I2C, SPI, USB, CAN, Ethernet, IrDA, UART, USART, I2S, SSP |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 512KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.5W |
| Number of ADC Channels | 8 |
| Number of I/Os | 70 |
| Number of Programmable I/O | 70 |
| Number of Timers/Counters | 4 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 64KB |
| RoHS Compliant | No |
| Series | LPC17xx |
| Watchdog Timer | Yes |
| RoHS | Not CompliantNo |
