32-bit ARM Cortex-M3 microcontroller featuring 120MHz operation, 512KB FLASH, and 96KB SRAM. Integrated peripherals include Ethernet, USB, CAN, I2C, SPI, UART, and I2S. This surface-mount TFBGA package offers 165 programmable I/Os and operates from 2.4V to 3.6V. With 8 ADC channels and 6 PWM channels, it is suitable for demanding embedded applications.
Frequency120MHz
PackageTFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP LPC1778FET208,551 technical specifications.
General
Package/Case
TFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
120MHz
Height
0.8mm
Interface
I2C, SPI, USB, CAN, Ethernet, MMC, SSP, UART, USART, EBI/EMI, Serial, I2S, SD
Lead Free
Lead Free
Length
15.1mm
Max Frequency
120MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Supply Voltage
2.4V
Mount
Surface Mount
Number of ADC Channels
8
Number of Ethernet Channels
1
Number of I/Os
165
Number of I2C Channels
3
Number of Programmable I/O
165
Number of PWM Channels
6
Number of SPI Channels
3
Number of Timers/Counters
4
Number of UART Channels
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
126
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
96KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPC17xx
Watchdog Timer
Yes
Width
15.1mm
Compliance
RoHS
Compliant
Datasheet
NXP LPC1778FET208,551 Datasheet
Download the complete datasheet for NXP LPC1778FET208,551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

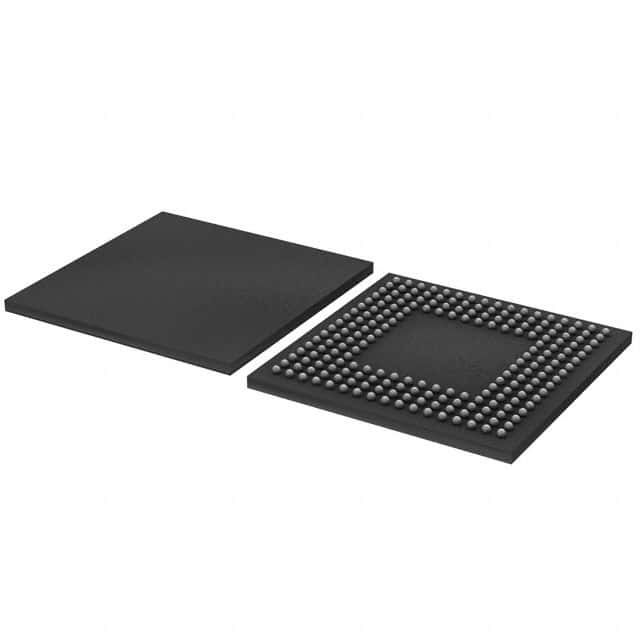

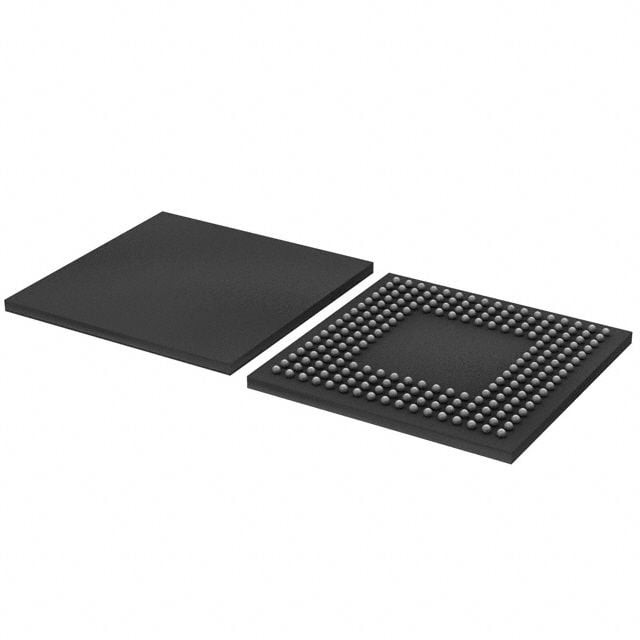

Product Images
