32-bit ARM Cortex-M3 microcontroller operating at up to 180MHz. Features 200kB SRAM, Quad SPI Flash Interface (SPIFI), two High-speed USB ports, Ethernet, and an LCD controller. Offers extensive connectivity including I2C, SPI, CAN, IrDA, MMC, SD, SSP, UART, USART, EBI/EMI, and I2S interfaces. Housed in a 256-pin LBGA package, this surface-mount component operates from 2.2V to 3.6V and includes peripherals like DMA, PWM, and a watchdog timer.
Frequency180MHz
PackageLBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP LPC1850FET256,551 technical specifications.
General
| Package/Case | LBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 180MHz |
| Height | 1.1mm |
| Interface | I2C, SPI, USB, CAN, Ethernet, IrDA, MMC, SD, SSP, UART, USART, EBI/EMI, I2S |
| Lead Free | Lead Free |
| Length | 17.2mm |
| Max Frequency | 150MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.5W |
| Max Supply Voltage | 3.6V |
| Memory Size | 128B |
| Memory Type | ROMless, , SRAM |
| Min Supply Voltage | 2.2V |
| Mount | Surface Mount |
| Number of ADC Channels | 2 |
| Number of Ethernet Channels | 1 |
| Number of I/Os | 164 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 164 |
| Number of PWM Channels | 1 |
| Number of SPI Channels | 4 |
| Number of Timers/Counters | 6 |
| Number of UART Channels | 4 |
| Oscillator Type | Internal |
| Package Quantity | 90 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD |
| Radiation Hardening | No |
| RAM Size | 200KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LPC18xx |
| Watchdog Timer | Yes |
| Width | 17.2mm |
Compliance
| RoHS | Compliant |
Datasheet
NXP LPC1850FET256,551 Datasheet
Download the complete datasheet for NXP LPC1850FET256,551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

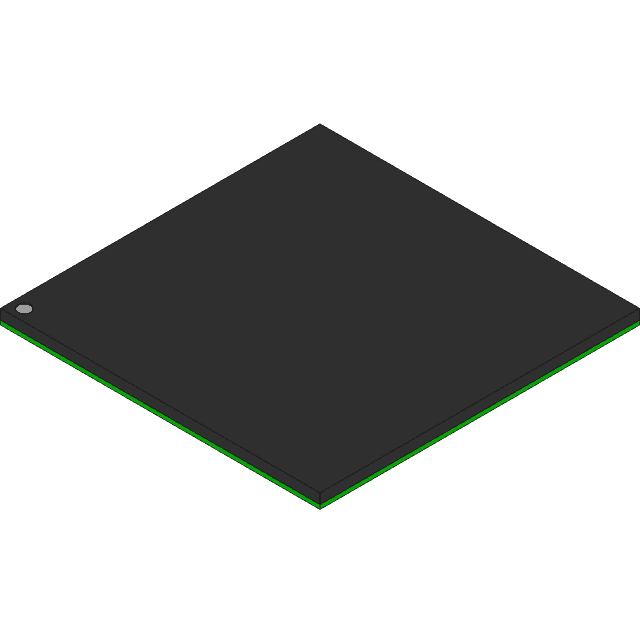

Product Images
