32-bit microcontroller featuring an ARM core operating at up to 70MHz. This surface mount device offers 32KB of FLASH memory and 8KB of RAM, with 32 programmable I/O pins. Integrated peripherals include multiple UART, SPI, I2C, and PWM channels, alongside 4 timers/counters and an 8-channel 10-bit ADC. Operating voltage ranges from 1.65V to 3.6V, with a typical 3.3V supply.
Frequency70MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP LPC2103FHN48,551 technical specifications.
General
Core Architecture
ARM
Data Bus Width
32b
Frequency
70MHz
Height
0.95mm
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Length
7.1mm
Max Frequency
70MHz
Max Operating Temperature
85°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
32
Number of I2C Channels
1
Number of Programmable I/O
32
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPC2100
Watchdog Timer
Yes
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
NXP LPC2103FHN48,551 Datasheet
Download the complete datasheet for NXP LPC2103FHN48,551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

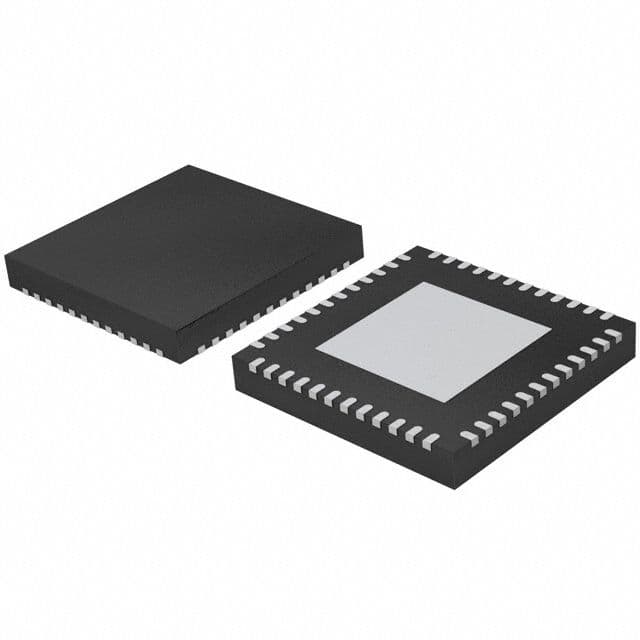

Product Images
