16/32-bit ARM microcontroller featuring a 75MHz core, 16KB RAM, and 76 programmable I/Os. Integrated peripherals include I2C, SPI, SSP, UART, USART, EBI/EMI, PWM, and a watchdog timer. This ROMless MCU offers an 8-channel 10-bit ADC and operates from 1.65V to 3.6V, with a typical 3.3V supply. Packaged in a 144-pin QFP (SOT-486-1), it supports an operating temperature range of -40°C to 85°C.
Frequency75MHz
PackageSOT-486-1
Quick Jump:
Technical Specifications
NXP LPC2210FBD144/01,5 technical specifications.
General
| Package/Case | SOT-486-1 |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 75MHz |
| Interface | I2C, SPI, SSP, UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Length | 20.1mm |
| Max Frequency | 75MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.5W |
| Max Supply Voltage | 3.6V |
| Memory Type | ROMless, |
| Min Supply Voltage | 1.65V |
| Number of ADC Channels | 8 |
| Number of I/Os | 76 |
| Number of Programmable I/O | 76 |
| Number of Timers/Counters | 2 |
| Number of UART Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 60 |
| Packaging | Tray |
| Peripherals | PWM, I2C |
| Radiation Hardening | No |
| RAM Size | 16KB |
| RoHS Compliant | Yes |
| Series | LPC2000 |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NXP LPC2210FBD144/01,5 Datasheet
Download the complete datasheet for NXP LPC2210FBD144/01,5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

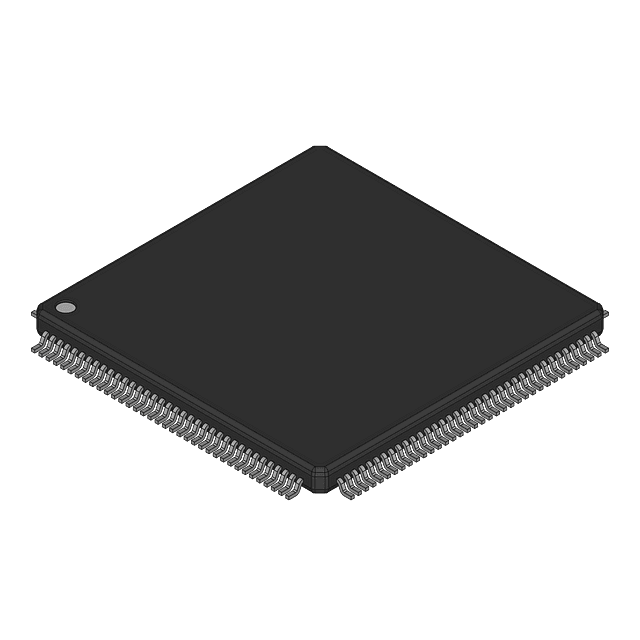

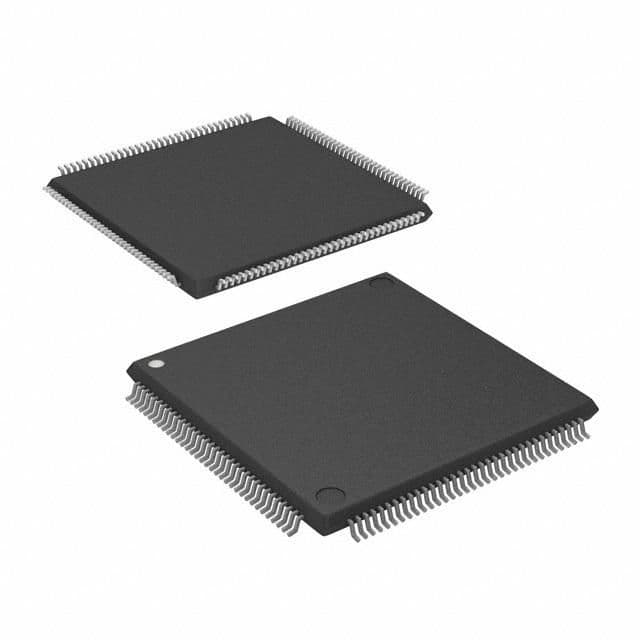

Product Images
