32-bit ARM microcontroller featuring a 72MHz core, 512KB FLASH memory, and 98KB RAM. This integrated circuit offers extensive connectivity with Ethernet, CAN, USB 2.0 (device/host/OTG), I2C, SPI, UART, and an external memory interface. It includes 136 programmable I/Os, multiple timers, PWM channels, and an 8-channel ADC. Operating from 3V to 3.6V, this RoHS compliant component is housed in a 180-pin BGA package.
Frequency72MHz
PackageSOT-570-3
Quick Jump:
Technical Specifications
NXP LPC2458FET180,551 technical specifications.
General
| Package/Case | SOT-570-3 |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 72MHz |
| Height | 0.85mm |
| Interface | I2C, SPI, USB, CAN, Ethernet, MMC, SSP, UART, USART, EBI/EMI, I2S, IrDA |
| Lead Free | Lead Free |
| Length | 12.2mm |
| Max Frequency | 72MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.5W |
| Max Supply Voltage | 3.6V |
| Memory Size | 512KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 3V |
| Number of ADC Channels | 8 |
| Number of Ethernet Channels | 1 |
| Number of I/Os | 136 |
| Number of I2C Channels | 3 |
| Number of Programmable I/O | 136 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 3 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 4 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 189 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C |
| Radiation Hardening | No |
| RAM Size | 98KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LPC2400 |
| Watchdog Timer | Yes |
| Width | 12.2mm |
Compliance
| RoHS | Compliant |
Datasheet
NXP LPC2458FET180,551 Datasheet
Download the complete datasheet for NXP LPC2458FET180,551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

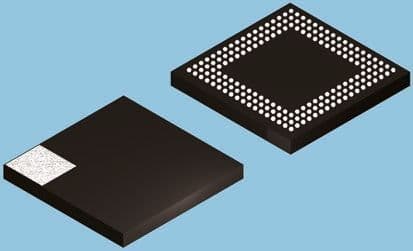

Product Images
