32-bit ARM microcontroller featuring a 72MHz core, 512KB FLASH memory, and 98KB RAM. Integrated peripherals include Ethernet, CAN, USB 2.0 (device/host/OTG), I2C, SPI, UART, and an external memory interface. This device offers 160 programmable I/Os, 8 ADC channels, and 6 timers. Packaged in a 208-pin BGA, it operates from 3V to 3.6V and is RoHS compliant.
Frequency72MHz
PackageSOT-950-1
Quick Jump:
Technical Specifications
NXP LPC2468FET208,551 technical specifications.
General
Package/Case
SOT-950-1
Core Architecture
ARM
Data Bus Width
32b
Frequency
72MHz
Height
0.8mm
Interface
I2C, SPI, USB, CAN, Ethernet, MMC, SSP, UART, USART, EBI/EMI, I2S
Lead Free
Lead Free
Length
15.1mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of ADC Channels
8
Number of Ethernet Channels
1
Number of I/Os
160
Number of I2C Channels
3
Number of Programmable I/O
160
Number of PWM Channels
2
Number of SPI Channels
3
Number of Timers/Counters
6
Number of UART Channels
4
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
126
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
98KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPC2400
Watchdog Timer
Yes
Width
15.1mm
Compliance
RoHS
Compliant
Datasheet
NXP LPC2468FET208,551 Datasheet
Download the complete datasheet for NXP LPC2468FET208,551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

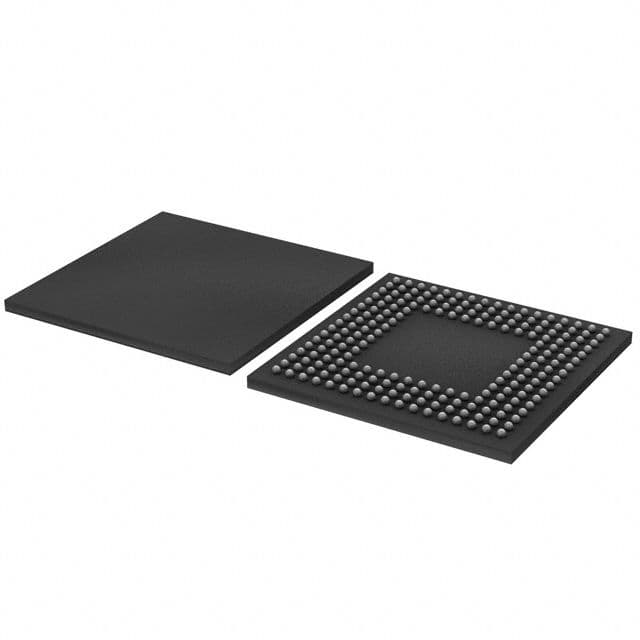

Product Images
