ARM9 flashless microcontroller, operating at 125MHz, features a 32-bit data bus and 56KB RAM. This surface mount LQFP package offers extensive connectivity with I2C (2 channels), SPI (3 channels), UART (2 channels), USB, CAN, USART, LIN, and EBI/EMI interfaces. It includes 8 ADC channels, 6 PWM channels, 6 timers/counters, and 152 I/Os, with 160 programmable I/Os. Operating from 1.8V to 3.6V, this RoHS compliant component is designed for a temperature range of -40°C to 85°C.
Frequency125MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP LPC2930FBD208,551 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
125MHz
Height
1.45mm
Interface
I2C, SPI, UART, USB, CAN, USART, LIN, EBI/EMI
Lead Free
Lead Free
Length
28mm
Max Frequency
125MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Memory Type
ROMless,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
152
Number of I2C Channels
2
Number of Programmable I/O
160
Number of PWM Channels
6
Number of SPI Channels
3
Number of Timers/Counters
6
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
36
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
56KB
RoHS Compliant
Yes
Series
LPC2900
Width
28.1mm
Compliance
RoHS
Compliant
Datasheet
NXP LPC2930FBD208,551 Datasheet
Download the complete datasheet for NXP LPC2930FBD208,551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

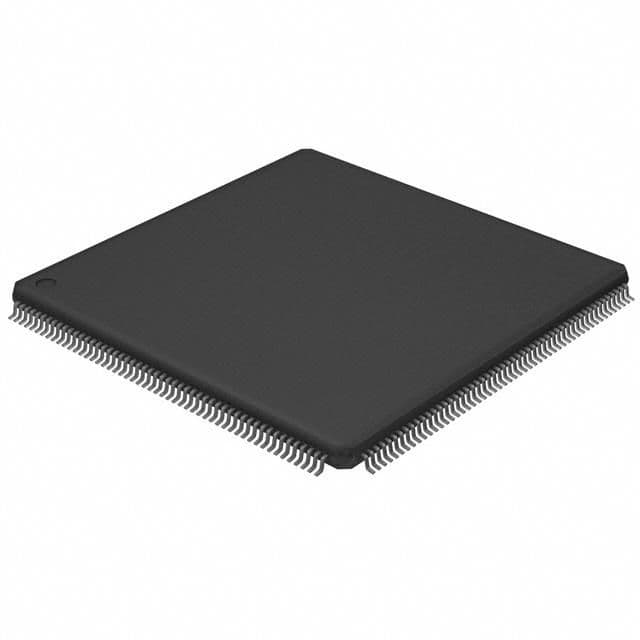

Product Images
