32-bit ARM926EJ-S microcontroller operating at up to 270MHz. Features 192KB SRAM, USB High-speed OTG, SD/MMC, NAND flash controller, and a Decryption Engine. Offers extensive interfaces including I2C, SPI, UART, USART, EBI/EMI, and I2S. Packaged in a TFBGA, surface-mount configuration with a 180-pin count. Operates from a 1.1V to 1.3V supply voltage range.
Frequency270MHz
PackageTFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP LPC3143FET180,551 technical specifications.
General
Package/Case
TFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
270MHz
Interface
I2C, SPI, USB, IrDA, MMC, UART, USART, EBI/EMI, I2S
Max Frequency
270MHz
Max Operating Temperature
85°C
Max Supply Voltage
1.3V
Memory Type
ROMless,
Min Operating Temperature
-40°C
Min Supply Voltage
1.1V
Mount
Surface Mount
Number of I/Os
20
Number of Timers/Counters
4
Operating Supply Voltage
1.2V
Oscillator Type
External
Package Quantity
189
Packaging
Tray
Peripherals
PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
192KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPC3100
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
NXP LPC3143FET180,551 Datasheet
Download the complete datasheet for NXP LPC3143FET180,551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

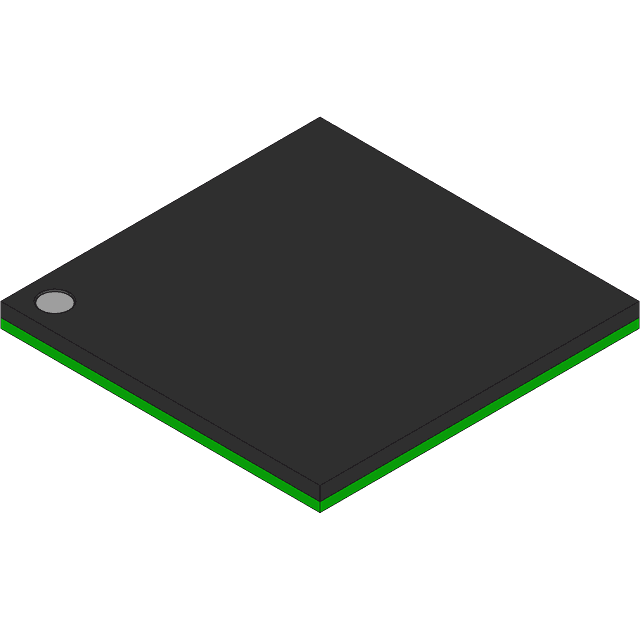

Product Images
