NXP
LPC3180FEL320
IC 32-BIT, FLASH, 208 MHz, RISC MICROCONTROLLER, PBGA320, 13 X 13 MM, 0.90 MM HEIGHT, PLASTIC, SOT-824-1, LFBGA-320, Microcontroller
Frequency208MHz
PackageLFBGA
Quick Jump:
Technical Specifications
NXP LPC3180FEL320 technical specifications.
General
Access Time
208us
Package/Case
LFBGA
Core Architecture
ARM
Frequency
208MHz
Interface
I2C, SPI, USB, MMC, UART, USART, EBI/EMI
Lead Free
Lead Free
Max Operating Temperature
85°C
Memory Type
ROMless,
Min Operating Temperature
-40°C
Max Supply Voltage
3.3V
Min Supply Voltage
2.7V
Number of I/Os
55
Number of PWM Channels
2
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
160
Packaging
Tray
Peripherals
PWM, WDT, DMA
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPC3100
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
NXP LPC3180FEL320 Datasheet
Download the complete datasheet for NXP LPC3180FEL320 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

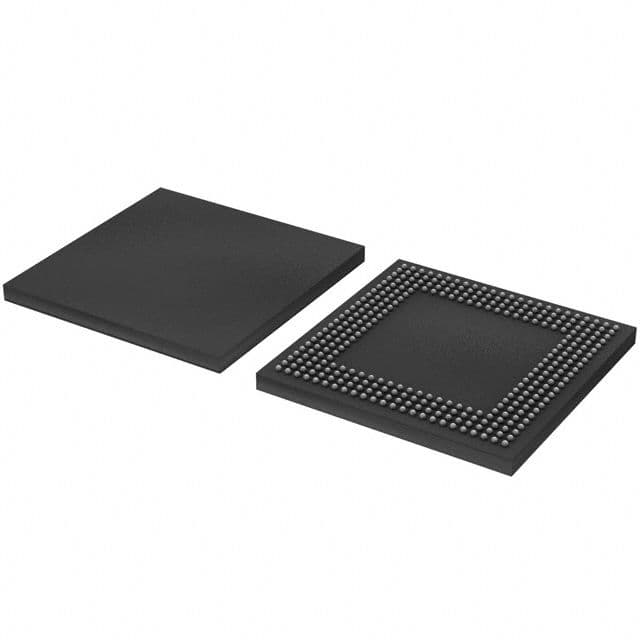

Product Images
