ARM9 microprocessor featuring a floating-point coprocessor, operating at up to 208MHz. This ROMless microcontroller offers 64KB RAM, 55 programmable I/Os, and interfaces including I2C, SPI, USB, MMC, UART, USART, and EBI/EMI. It supports PWM, WDT, and DMA peripherals, with two timers/counters and an external oscillator. Packaged in LFBGA for surface mounting, it operates from 2.7V to 3.3V, with a temperature range of -40°C to 85°C.
Frequency208MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP LPC3180FEL320,551 technical specifications.
General
| Package/Case | LFBGA |
| Core Architecture | ARM |
| Data Bus Width | 16b |
| Frequency | 208MHz |
| Interface | I2C, SPI, USB, MMC, UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Length | 13mm |
| Max Frequency | 208MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 940mW |
| Max Supply Voltage | 3.3V |
| Memory Type | ROMless, |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of I/Os | 55 |
| Number of Programmable I/O | 55 |
| Number of Timers/Counters | 2 |
| Oscillator Type | External |
| Package Quantity | 160 |
| Packaging | Tray |
| Peripherals | PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 64KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LPC3100 |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NXP LPC3180FEL320,551 Datasheet
Download the complete datasheet for NXP LPC3180FEL320,551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

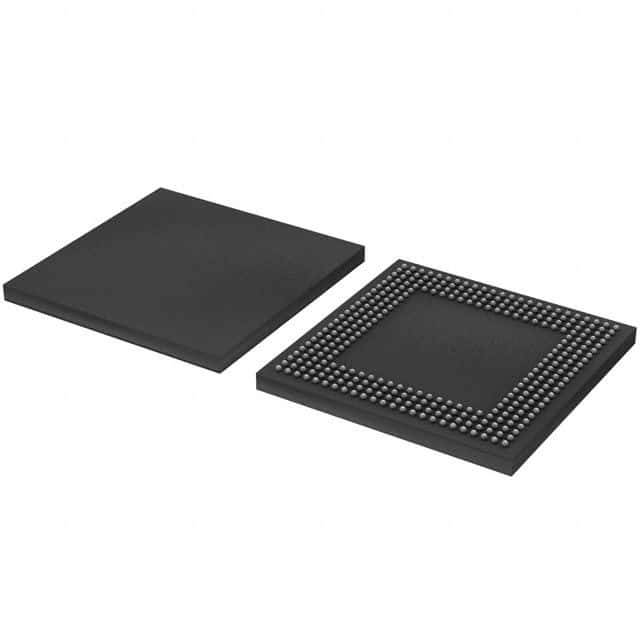

Product Images
