32-bit ARM Cortex-M4 microcontroller featuring a 120MHz core frequency, 512KB FLASH memory, and 96KB SRAM. Offers extensive interface support including I2C, SPI, USB (Device/Host/OTG), CAN, Ethernet, and more. Designed for surface mount installation in an LQFP package, operating from 2.4V to 3.6V with a typical 3.3V supply. Includes integrated peripherals such as DMA, PWM, and a watchdog timer, with 165 programmable I/Os.
Frequency120MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP LPC4078FBD208,551 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
120MHz
Interface
I2C, SPI, USB, CAN, Ethernet, IrDA, MMC, SD, SSP, UART, USART, EBI/EMI, I2S
Lead Free
Lead Free
Max Frequency
120MHz
Max Operating Temperature
85°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.4V
Mount
Surface Mount
Number of I/Os
165
Number of Programmable I/O
165
Number of Timers/Counters
4
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
36
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
96KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPC40xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
NXP LPC4078FBD208,551 Datasheet
Download the complete datasheet for NXP LPC4078FBD208,551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

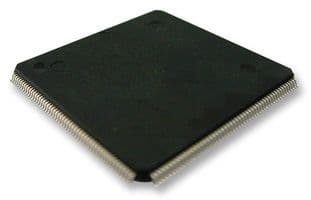

Product Images
