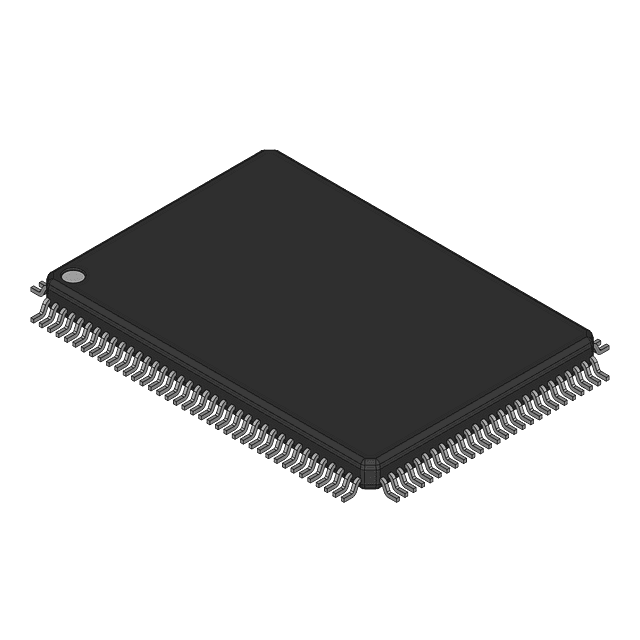

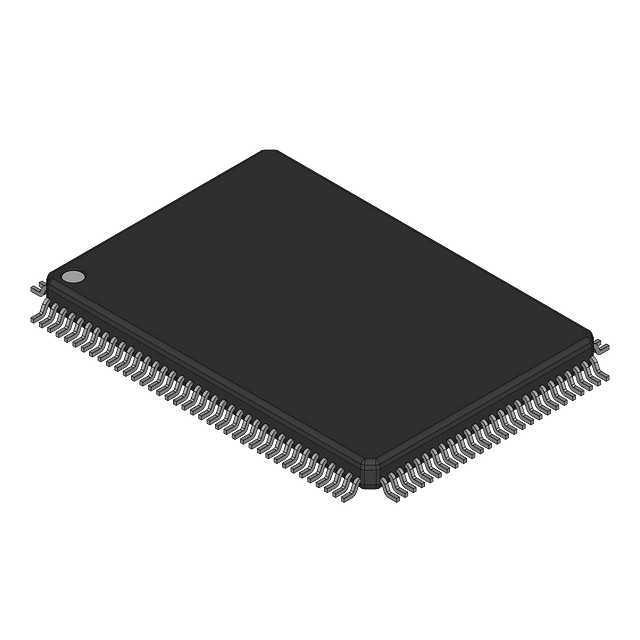

16-bit Digital Signal Processor (DSP) featuring 64KB FLASH memory and 8KB RAM. Operates at a maximum frequency of 40MHz with a 16-bit data bus. Offers SPI and SCI interfaces, 49 programmable I/Os, and 2 timers/counters. This surface mount device supports a supply voltage range of 2.25V to 3.6V and operates from -40°C to 105°C. Includes POR, PWM, and WDT peripherals, with RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP MC56F8135VFGE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Data Bus Width | 16b |
| Density | 64KB |
| Frequency | 40MHz |
| Halogen Free | Halogen Free |
| Interface | SPI, SCI |
| Lead Free | Lead Free |
| Max Frequency | 40MHz |
| Max Operating Temperature | 105°C |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.25V |
| Mount | Surface Mount |
| Number of I/Os | 49 |
| Number of Programmable I/O | 49 |
| Number of Timers/Counters | 2 |
| Operating Supply Voltage | 2.5V |
| Oscillator Type | External |
| Package Quantity | 360 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 8KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 56F8xxx |
| Watchdog Timer | Yes |
| Weight | 0.032983oz |
| RoHS | Compliant |
Download the complete datasheet for NXP MC56F8135VFGE to view detailed technical specifications.
