16-bit Digital Signal Processor (DSP) operating at 60MHz. Features 512KB FLASH memory and 36KB RAM. Supports SPI, CAN, SCI, and EBI/EMI interfaces. Packaged in LQFP with 49 I/Os, this surface mount component operates from 3V to 3.6V and is Halogen Free and RoHS Compliant. Includes peripherals like POR, PWM, WDT, and a Temp Sensor, with a temperature range of -40°C to 125°C.
Frequency60MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MC56F8365MFGE technical specifications.
General
Package/Case
LQFP
Data Bus Width
16b
Frequency
60MHz
Halogen Free
Halogen Free
Interface
SPI, CAN, SCI, EBI/EMI
Lead Free
Lead Free
Max Frequency
60MHz
Max Operating Temperature
125°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
49
Number of Programmable I/O
49
Number of Timers/Counters
4
Operating Supply Voltage
3.3V
Oscillator Type
External
Package Quantity
72
Packaging
Tray
Peripherals
POR, PWM, WDT, Temp Sensor
Radiation Hardening
No
RAM Size
36KB
RoHS Compliant
Yes
Series
56F8xxx
Watchdog Timer
Yes
Weight
0.032983oz
Compliance
RoHS
Compliant
Datasheet
NXP MC56F8365MFGE Datasheet
Download the complete datasheet for NXP MC56F8365MFGE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

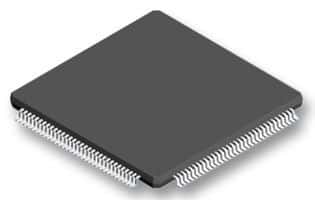

Product Images
