8-bit HC08 microcontroller featuring 8KB FLASH memory and 256B RAM. Operates at up to 3MHz with an 8-bit data bus. Includes USB interface, 13 I/Os, 37 programmable I/Os, 1 PWM channel, and 2 timers. Packaged in a PDIP with through-hole mounting, supporting a 4V to 5.5V operating supply voltage.
Frequency3MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
NXP MC68HC908JB8JPE technical specifications.
General
Package/Case
PDIP
Core Architecture
HC08
Data Bus Width
8b
Frequency
3MHz
Height
3.56mm
Interface
USB
Length
27.17mm
Max Frequency
3MHz
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
0°C
Min Supply Voltage
4V
Mount
Through Hole
Number of Ethernet Channels
0
Number of I/Os
13
Number of I2C Channels
0
Number of Programmable I/O
37
Number of PWM Channels
1
Number of SPI Channels
0
Number of Timers/Counters
2
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
18
Packaging
Rail/Tube
Peripherals
POR, PWM, LVD
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
No
Series
HC08
Watchdog Timer
Yes
Width
6.6mm
Compliance
RoHS
Not CompliantNo
Datasheet
NXP MC68HC908JB8JPE Datasheet
Download the complete datasheet for NXP MC68HC908JB8JPE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

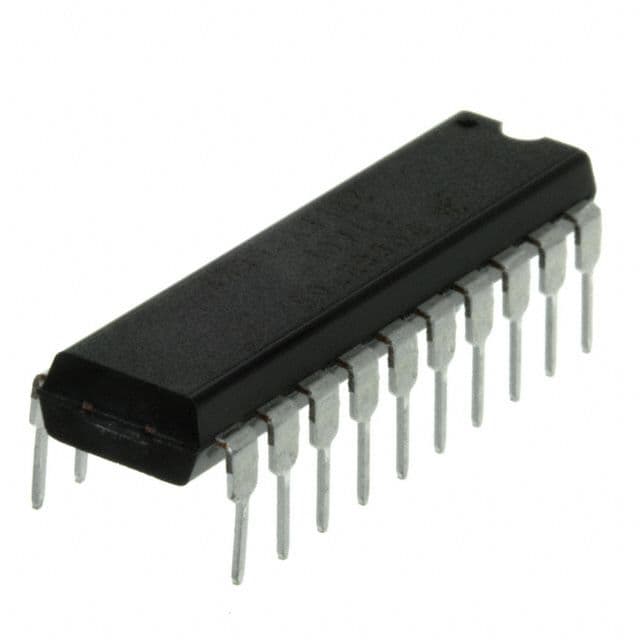

Product Images
