8-bit Flash Microcontroller featuring an HC08 core architecture, operating at up to 8MHz. This surface mount device offers 4KB of FLASH memory and 256B of RAM, with 13 programmable I/Os. Integrated peripherals include POR, PWM, and LVD, alongside SPI and SCI interfaces. Designed for a wide operating temperature range of -40°C to 85°C, it supports supply voltages from 2.7V to 5.5V.
Frequency8MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MC908QB4CDWER technical specifications.
General
| Package/Case | SOIC |
| Core Architecture | HC08 |
| Data Bus Width | 8b |
| Frequency | 8MHz |
| Halogen Free | Halogen Free |
| Interface | SPI, SCI |
| Max Frequency | 8MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 4KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of I/Os | 13 |
| Number of Programmable I/O | 13 |
| Number of Timers/Counters | 4 |
| Operating Supply Voltage | 5V |
| Oscillator Type | Internal |
| Packaging | Tape and Reel |
| Peripherals | POR, PWM, LVD |
| Radiation Hardening | No |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Series | HC08 |
Compliance
| RoHS | Compliant |
Datasheet
NXP MC908QB4CDWER Datasheet
Download the complete datasheet for NXP MC908QB4CDWER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

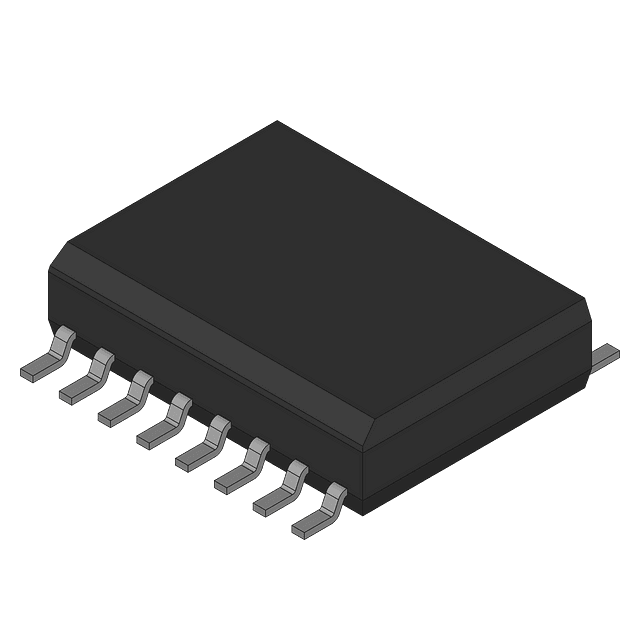

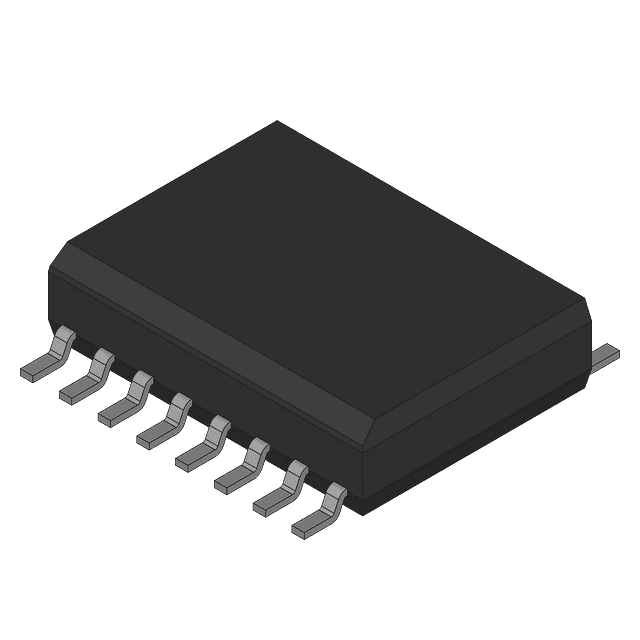

Product Images
