8-bit microcontroller (MCU) featuring a 60KB FLASH memory and 4KB RAM. Operates at a maximum frequency of 20MHz with an S08 core architecture and 8-bit data bus. Supports SPI, SCI, and I2C interfaces, with 56 programmable I/Os and 8 timers/counters. Housed in a 64-pin LQFP package, this halogen-free and lead-free component operates from 2.08V to 3.6V, with an access time of 20µs.
Frequency20MHz
PackageLQFP
Quick Jump:
Technical Specifications
NXP MC9S08GB60CFUE technical specifications.
General
| Access Time | 20us |
| Package/Case | LQFP |
| Core Architecture | S08 |
| Data Bus Width | 8b |
| Halogen Free | Halogen Free |
| Interface | SPI, SCI, I2C |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 60KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.08V |
| Number of I/Os | 56 |
| Number of Programmable I/O | 56 |
| Number of Timers/Counters | 8 |
| Oscillator Type | Internal |
| Package Quantity | 160 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, LVD |
| RAM Size | 4KB |
| RoHS Compliant | Yes |
| Series | S08 |
Compliance
| RoHS | Compliant |
Datasheet
NXP MC9S08GB60CFUE Datasheet
Download the complete datasheet for NXP MC9S08GB60CFUE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

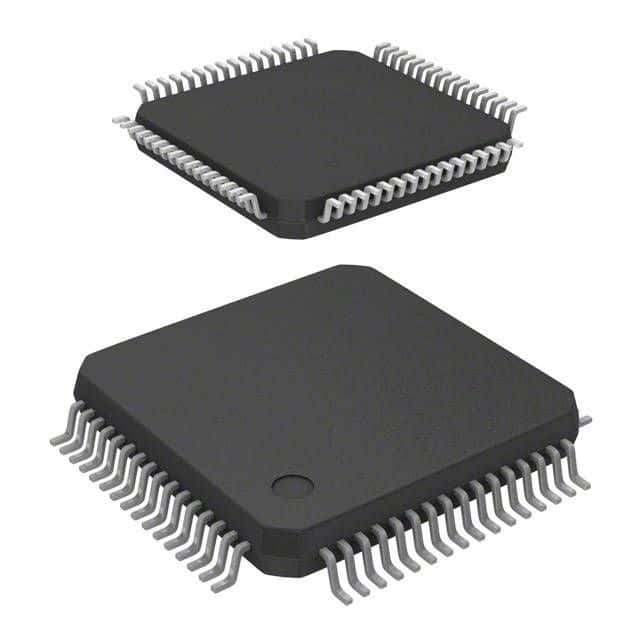

Product Images
