8-bit S08 microcontroller featuring a 48MHz core clock speed and 32KB of FLASH memory. This integrated circuit offers 4KB of RAM and supports I2C, SPI, USB, SCI, and UART interfaces. With 33 programmable I/O pins, it includes peripherals such as POR, PWM, WDT, LVD, and I2C. The device operates from 1.8V to 3.6V, with a temperature range of -40°C to 85°C, and is available in a surface-mount LQFP package.
Frequency48MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MC9S08MM32CLH technical specifications.
General
Package/Case
LQFP
Core Architecture
S08
Data Bus Width
8b
Frequency
48MHz
Halogen Free
Halogen Free
Interface
I2C, SPI, USB, SCI, UART
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
33
Number of Programmable I/O
33
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
S08
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
NXP MC9S08MM32CLH Datasheet
Download the complete datasheet for NXP MC9S08MM32CLH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

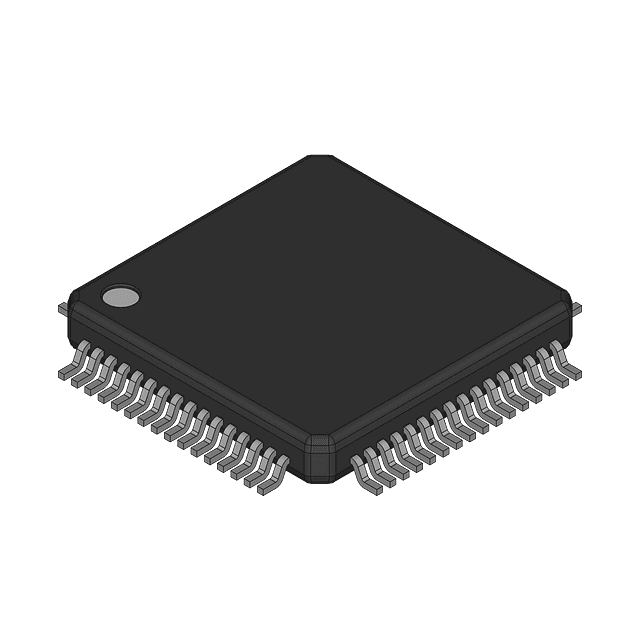

Product Images
