Technical Specifications
NXP MC9S08SH4MFK technical specifications.
General
Package/Case
QFN
Core Architecture
S08
Data Bus Width
8b
Interface
I2C, SPI, SCI, LIN
Max Frequency
40MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
4KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Number of I/Os
17
Number of Programmable I/O
17
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Packaging
Tray
Peripherals
POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
S08
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
NXP MC9S08SH4MFK Datasheet
Download the complete datasheet for NXP MC9S08SH4MFK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

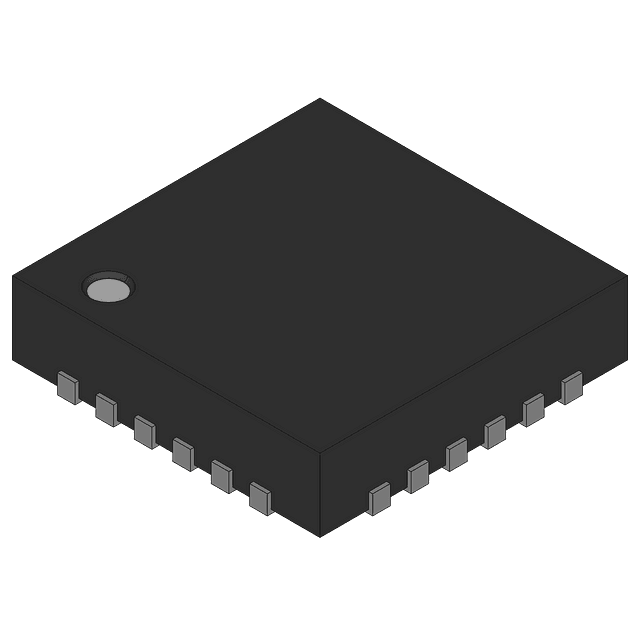

Product Images
