16-Bit HCS12 Microcontroller IC featuring a 128KB FLASH memory and 8KB RAM. Operates at a maximum frequency of 25MHz with a 16-bit data bus width. Offers I2C, SPI, CAN, and SCI interfaces, along with PWM and WDT peripherals. This surface mount component is housed in an 80-QFP package and operates within a supply voltage range of 2.5V to 5V, with an operating temperature range of -40°C to 85°C. It is RoHS compliant and halogen-free.
Frequency50MHz
PackagePQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MC9S12DB128CFUE technical specifications.
General
Access Time
25us
Package/Case
PQFP
Core Architecture
HCS12
Data Bus Width
16b
Frequency
50MHz
Halogen Free
Halogen Free
Interface
I2C, SPI, CAN, SCI
Lead Free
Lead Free
Max Frequency
25MHz
Max Operating Temperature
85°C
Max Supply Voltage
5V
Memory Size
128KB
Memory Type
EEPROM, FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of I/Os
59
Number of Programmable I/O
59
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
84
Packaging
Tray
Peripherals
PWM, WDT
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
HCS12
Weight
0.032999oz
Compliance
RoHS
Compliant
Datasheet
NXP MC9S12DB128CFUE Datasheet
Download the complete datasheet for NXP MC9S12DB128CFUE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

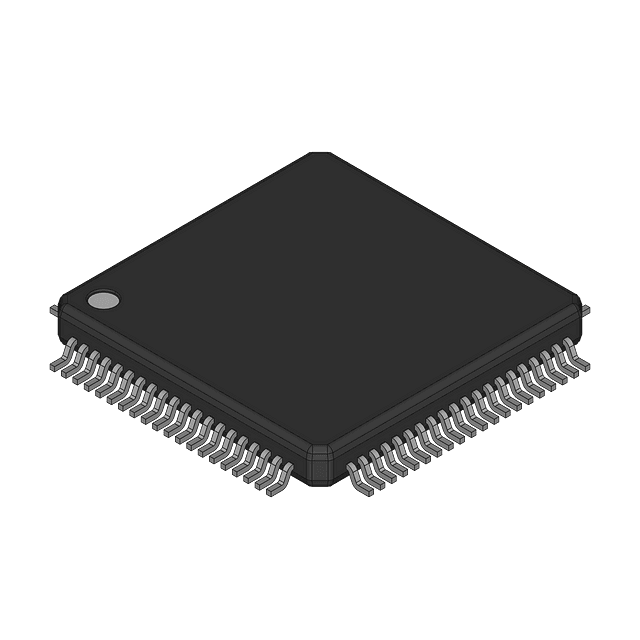

Product Images
