16-bit microcontroller featuring a HCS12 core architecture operating at up to 50MHz. This CMOS IC offers 128KB of FLASH memory and 6KB of RAM, with a 16-bit data bus width. It supports I2C, SPI, SCI, CAN, and EBI/EMI interfaces, and includes 85 programmable I/Os. The device is housed in a 112-pin LQFP surface mount package, operates from 2.35V to 5.5V, and is Halogen Free and RoHS Compliant.
Frequency50MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MC9S12HZ128VAL technical specifications.
General
Access Time
25us
Package/Case
LQFP
Core Architecture
HCS12
Data Bus Width
16b
Frequency
50MHz
Halogen Free
Halogen Free
Interface
I2C, SPI, SCI, CAN, EBI/EMI
Lead Free
Lead Free
Max Frequency
50MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2.35V
Mount
Surface Mount
Number of I/Os
85
Number of Programmable I/O
85
Number of Timers/Counters
8
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
300
Packaging
Tray
Peripherals
POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
6KB
RoHS Compliant
Yes
Series
HCS12
Watchdog Timer
Yes
Weight
0.045091oz
Compliance
RoHS
Compliant
Datasheet
NXP MC9S12HZ128VAL Datasheet
Download the complete datasheet for NXP MC9S12HZ128VAL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

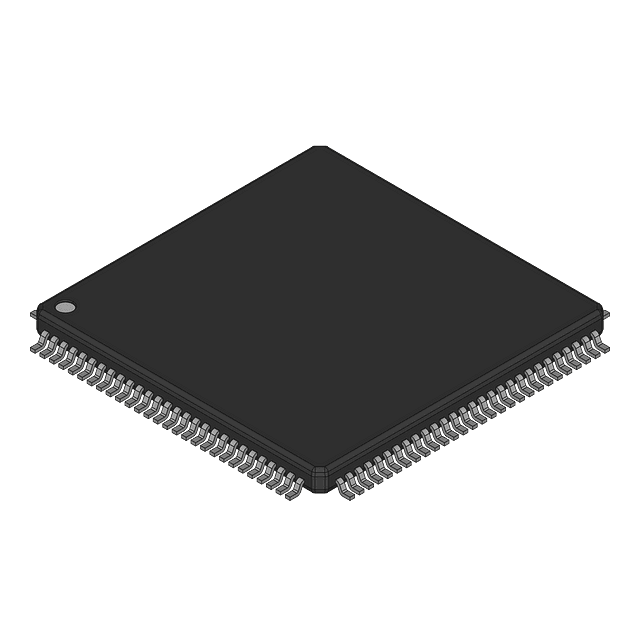

Product Images
