32-bit Coldfire RISC microcontroller featuring an 80MHz core frequency. This surface mount BGA package offers 64KB of FLASH memory and 16KB of RAM, with 56 programmable I/Os. Integrated peripherals include I2C, SPI, UART, USART, POR, PWM, WDT, DMA, and LVD. Operating voltage ranges from 3V to 3.6V, with an operating temperature range of -40°C to 85°C. This RoHS and Halogen Free component includes an internal oscillator and a watchdog timer.
Frequency80MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MCF52100CVM80 technical specifications.
General
Package/Case
BGA
Core Architecture
Coldfire
Data Bus Width
32b
Frequency
80MHz
Halogen Free
Halogen Free
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
56
Number of Programmable I/O
56
Number of Timers/Counters
10
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
240
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, LVD, I2C
Radiation Hardening
No
RAM Size
16KB
RoHS Compliant
Yes
Series
MCF521xx
Watchdog Timer
Yes
Weight
0.008575oz
Compliance
RoHS
Compliant
Datasheet
NXP MCF52100CVM80 Datasheet
Download the complete datasheet for NXP MCF52100CVM80 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

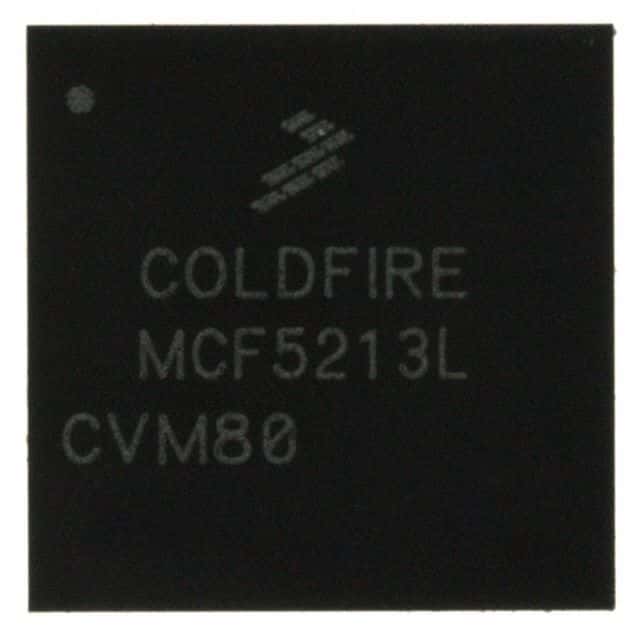

Product Images
