The MCF5481CVR166 is a 32-bit microcontroller based on the Coldfire core, which operates at a maximum frequency of 166 megahertz. This device features 32 kilobytes of RAM and supports a range of interfaces, including I2C, SPI, USB, CAN, Ethernet, UART, USART, and EBI/EMI. The MCF5481CVR166 is packaged in a BGA-388 package, suitable for surface mount applications, and operates over a temperature range of -40 degrees Celsius to 85 degrees Celsius. It is compliant with RoHS regulations and is designed for use in a variety of applications.
Frequency166MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MCF5481CVR166 technical specifications.
General
| Package/Case | BGA |
| Core Architecture | Coldfire |
| Data Bus Width | 32b |
| Frequency | 166MHz |
| Halogen Free | Halogen Free |
| Interface | I2C, SPI, USB, CAN, Ethernet, UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Max Frequency | 166MHz |
| Max Operating Temperature | 85°C |
| Memory Type | ROMless, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 1.43V |
| Mount | Surface Mount |
| Number of I/Os | 99 |
| Operating Supply Voltage | 1.58V |
| Oscillator Type | External |
| Packaging | Tray |
| Peripherals | PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 32KB |
| RoHS Compliant | Yes |
| Series | MCF548x |
Compliance
| RoHS | Compliant |
Datasheet
NXP MCF5481CVR166 Datasheet
Download the complete datasheet for NXP MCF5481CVR166 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

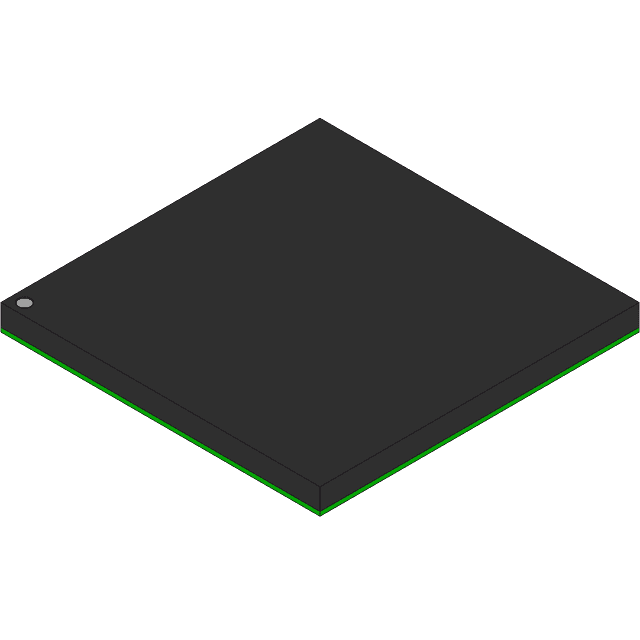

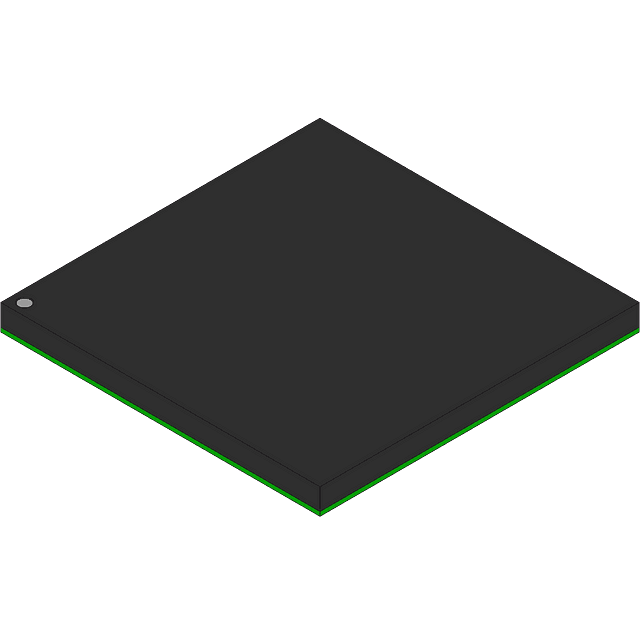

Product Images
