32-bit RISC microprocessor operating at 166MHz, featuring a BGA package for surface mounting. This microprocessor offers a 32-bit data bus, 64KB ROMless memory, and 32KB RAM. Integrated interfaces include I2C, SPI, USB, CAN, Ethernet, UART, USART, and EBI/EMI. Peripherals include PWM, WDT, and DMA. Operating voltage ranges from 1.43V to 3.6V, with a typical 3.3V.
Frequency166MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MCF5483CVR166 technical specifications.
General
| Package/Case | BGA |
| Data Bus Width | 32b |
| Frequency | 166MHz |
| Interface | I2C, SPI, USB, CAN, Ethernet, UART, USART, EBI/EMI |
| Max Frequency | 166MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 64KB |
| Memory Type | ROMless, |
| Min Supply Voltage | 1.43V |
| Mount | Surface Mount |
| Number of I/Os | 99 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | External |
| Package Quantity | 40 |
| Packaging | Tray |
| Peripherals | PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 32KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MCF548x |
| Weight | 0.113988oz |
Compliance
| RoHS | Compliant |
Datasheet
NXP MCF5483CVR166 Datasheet
Download the complete datasheet for NXP MCF5483CVR166 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

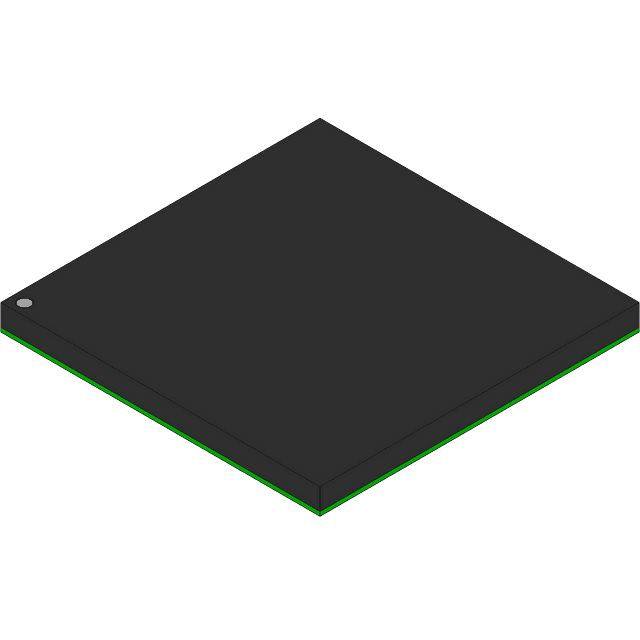

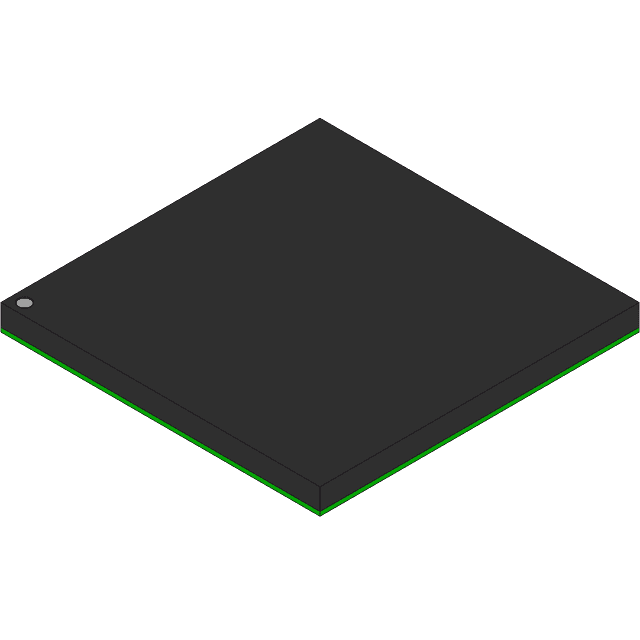

Product Images
