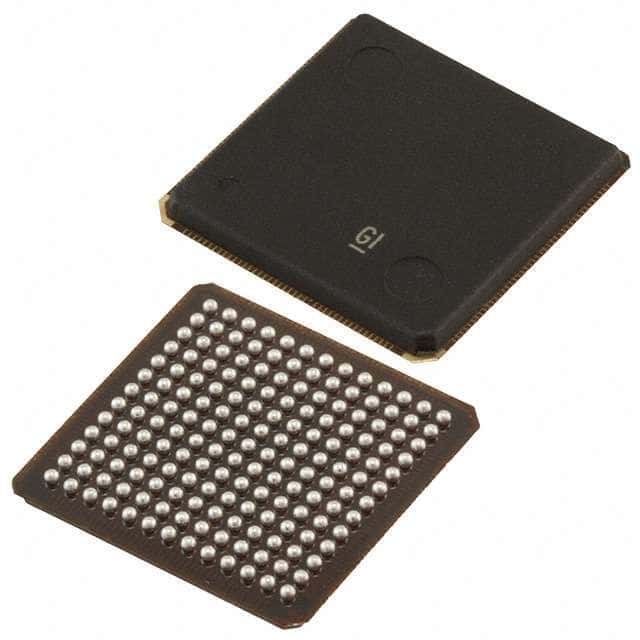

32-bit ARM microprocessor operating at 454MHz, featuring a single core and 32KB of L1 cache. This surface-mount component offers I2C, SPI, and UART interfaces, along with 6 ADC channels, 5 PWM channels, 4 timers/counters, and 1 USB channel. It operates within a supply voltage range of 1.62V to 2.1V and a temperature range of -10°C to 70°C. The microprocessor is housed in a 169-ball BGA package, is RoHS compliant, and halogen-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP MCIMX233DJM4B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | MAPBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 454MHz |
| Halogen Free | Halogen Free |
| Height | 1.4mm |
| Interface | I2C, SPI, UART |
| Lead Free | Lead Free |
| Length | 11mm |
| Max Frequency | 454MHz |
| Max I/O Voltage | 3.3V |
| Max Operating Temperature | 70°C |
| Memory Size | 32KB |
| Memory Type | ROM, L1 Cache, |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 2.1V |
| Min Supply Voltage | 1.62V |
| Mount | Surface Mount |
| Number of ADC Channels | 6 |
| Number of Cores | 1 |
| Number of I2C Channels | 1 |
| Number of PWM Channels | 5 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 3 |
| Number of USB Channels | 1 |
| Package Quantity | 176 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 32KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | i.MX23 |
| Weight | 0.009891oz |
| Width | 11mm |
| RoHS | Compliant |
Download the complete datasheet for NXP MCIMX233DJM4B to view detailed technical specifications.
