32-bit RISC microcontroller featuring a 100MHz ARM core and 512KB FLASH memory. This surface mount device offers 128KB RAM, 98 I/Os, and extensive interfaces including I2C (2 channels), SPI (3 channels), USB, CAN, UART (6 channels), and more. Operating from 1.71V to 3.6V, it supports a temperature range of -40°C to 105°C and includes peripherals like POR, PWM (8 channels), WDT, DMA, and LCD. The LQFP package is halogen and lead-free, complying with RoHS standards.
Frequency100MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MK40DN512ZVLQ10 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
100MHz
Halogen Free
Halogen Free
Height
1.6mm
Interface
I2C, SPI, USB, CAN, UART, IrDA, SD, USART, EBI/EMI, I2S
Lead Free
Lead Free
Length
20mm
Max Frequency
100MHz
Max Operating Temperature
105°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.71V
Mount
Surface Mount
Number of ADC Channels
2
Number of I/Os
98
Number of I2C Channels
2
Number of Programmable I/O
2
Number of PWM Channels
8
Number of SPI Channels
3
Number of Timers/Counters
14
Number of UART Channels
6
Oscillator Type
Internal
Package Quantity
60
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, LVD, LCD, I2C
Radiation Hardening
No
RAM Size
128KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Kinetis K40
Watchdog Timer
Yes
Weight
0.04653oz
Width
20mm
Compliance
RoHS
Compliant
Datasheet
NXP MK40DN512ZVLQ10 Datasheet
Download the complete datasheet for NXP MK40DN512ZVLQ10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

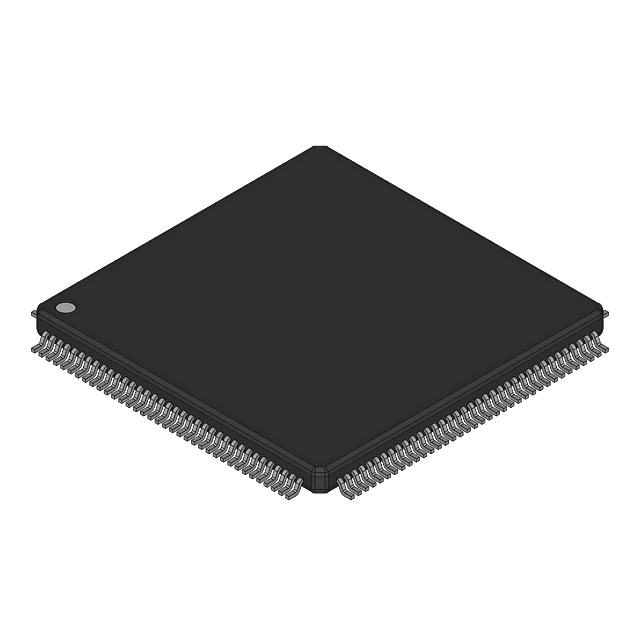

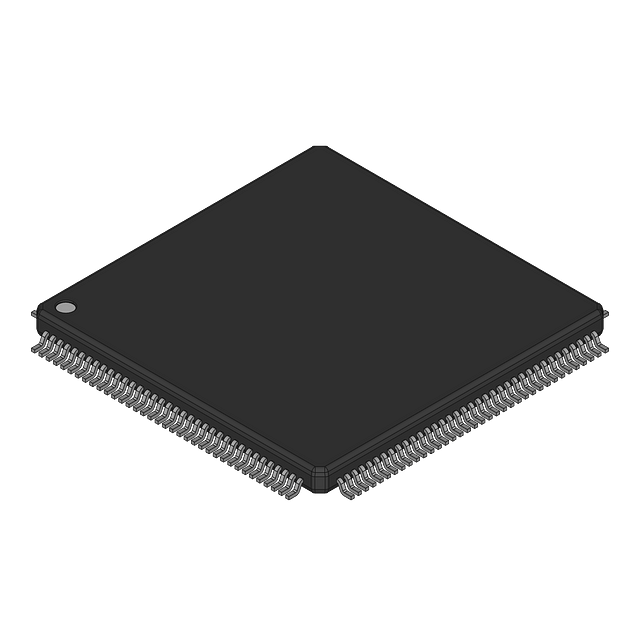

Product Images
