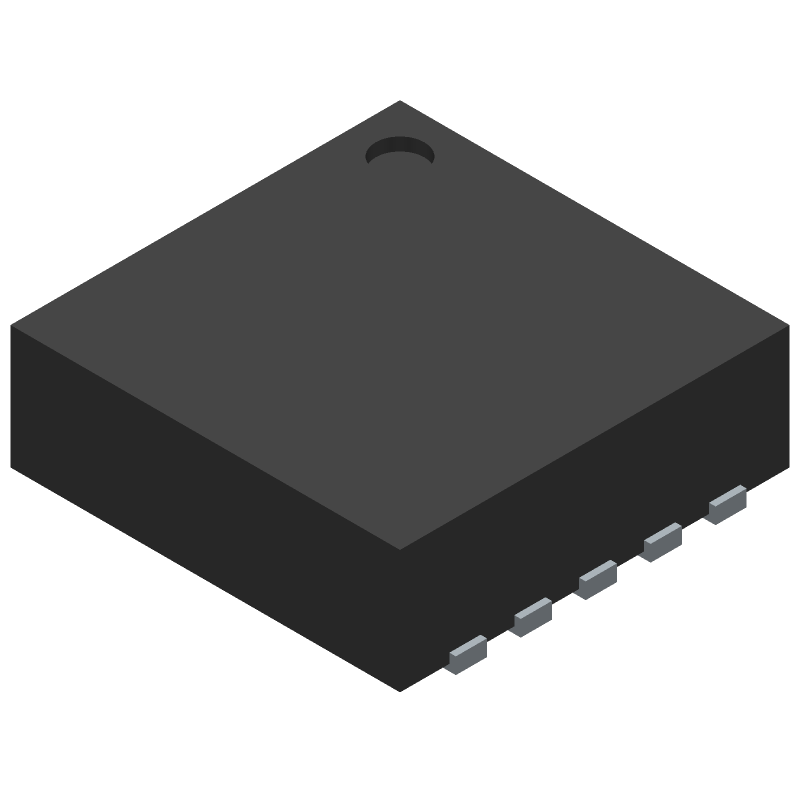

The MMA7660FCR1 from NXP is a specialized industrial temperature analog IC with a maximum operating temperature of 85 degrees Celsius and a minimum operating temperature of -40 degrees Celsius. It has 10 terminals and a dual terminal position. The device is packaged in a S-PDSO-N10 package with a width and length of 3mm. It operates within a supply voltage range of 2.4V to 3.6V.
Quick Jump:
Technical Specifications
NXP MMA7660FCR1 technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 10 |
| Min Operating Temperature | -40 |
| Terminal Position | DUAL |
| JEDEC Package Code | S-PDSO-N10 |
| Width | 3 |
| Length | 3 |
| Number of Functions | 1 |
| Temperature Grade | INDUSTRIAL |
| Supply Voltage-Nom (Vsup) | 2.8 |
| Supply Voltage-Max (Vsup) | 3.6 |
| Supply Voltage-Min (Vsup) | 2.4 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| HTS Code | 8542.39.00.01 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
NXP MMA7660FCR1 Datasheet
Download the complete datasheet for NXP MMA7660FCR1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
