32-bit RISC microcontroller featuring a 56MHz PowerPC core. This surface mount device offers 512KB FLASH memory and 32KB RAM, with an access time of 56µs. Integrated peripherals include SPI, CAN, UART, SCI, USART, EBI/EMI interfaces, POR, PWM, and a watchdog timer. Operating supply voltage ranges from 4.75V to 5.25V, supporting up to 5V I/O. Packaged in a 388-pin BGA, it operates between -40°C and 125°C.
Frequency56MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MPC564MZP56 technical specifications.
General
Access Time
56us
Package/Case
BGA
Core Architecture
PowerPC
Data Bus Width
32b
Frequency
56MHz
Halogen Free
Not Halogen Free
Interface
SPI, CAN, UART, SCI, USART, EBI/EMI
Lead Free
Contains Lead
Max Frequency
56MHz
Max I/O Voltage
5V
Max Operating Temperature
125°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of I/Os
56
Number of Programmable I/O
56
Number of Timers/Counters
2
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
200
Packaging
Tray
Peripherals
POR, PWM, WDT
RAM Size
32KB
RoHS Compliant
No
Series
MPC5xx
Watchdog Timer
Yes
Weight
0.086451oz
Compliance
RoHS
Not Compliant
Datasheet
NXP MPC564MZP56 Datasheet
Download the complete datasheet for NXP MPC564MZP56 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

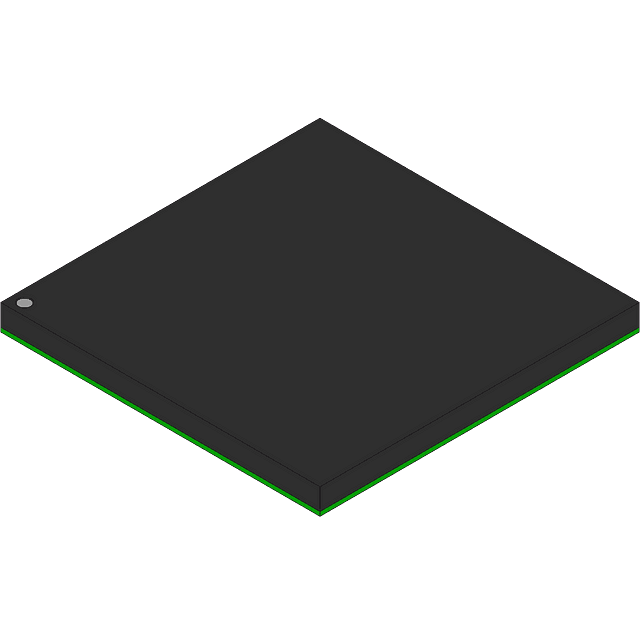

Product Images
