NXP
MPVZ5004G6U
GAGE, PEIZORESISTIVE PRESSURE SENSOR, 0-0.56Psi, 6.25%, 1-4.90V, SQUARE, SURFACE MOUNT
PackageSMD/SMT
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MPVZ5004G6U technical specifications.
General
Accuracy
6.25%
Package/Case
SMD/SMT
Halogen Free
Not Halogen Free
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
0°C
Max Pressure
2.32PSI
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Operating Pressure
0.57PSI
Operating Supply Voltage
5V
Output Type
Analog Voltage
Output Voltage
4.9V
Package Quantity
40
Packaging
Rail/Tube
Port Style
No Port
Pressure Type
Vented Gauge
RoHS Compliant
Yes
Series
MPVZ5004G
Supply Current
10mA
Termination
PCB
Weight
0.036773oz
Compliance
RoHS
Compliant
Datasheet
NXP MPVZ5004G6U Datasheet
Download the complete datasheet for NXP MPVZ5004G6U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

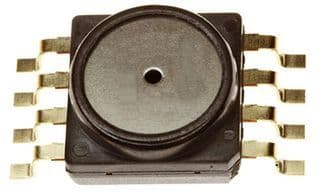

Product Images
